Z-8060 4WD

Genie Z-8060 4WD

z-8060_alt4
z-8060_alt3
z-8060_alt6
z-8060_alt5
C10344424
Boom Type
Articulating
Platform Height
78ft
Platform Length
36in

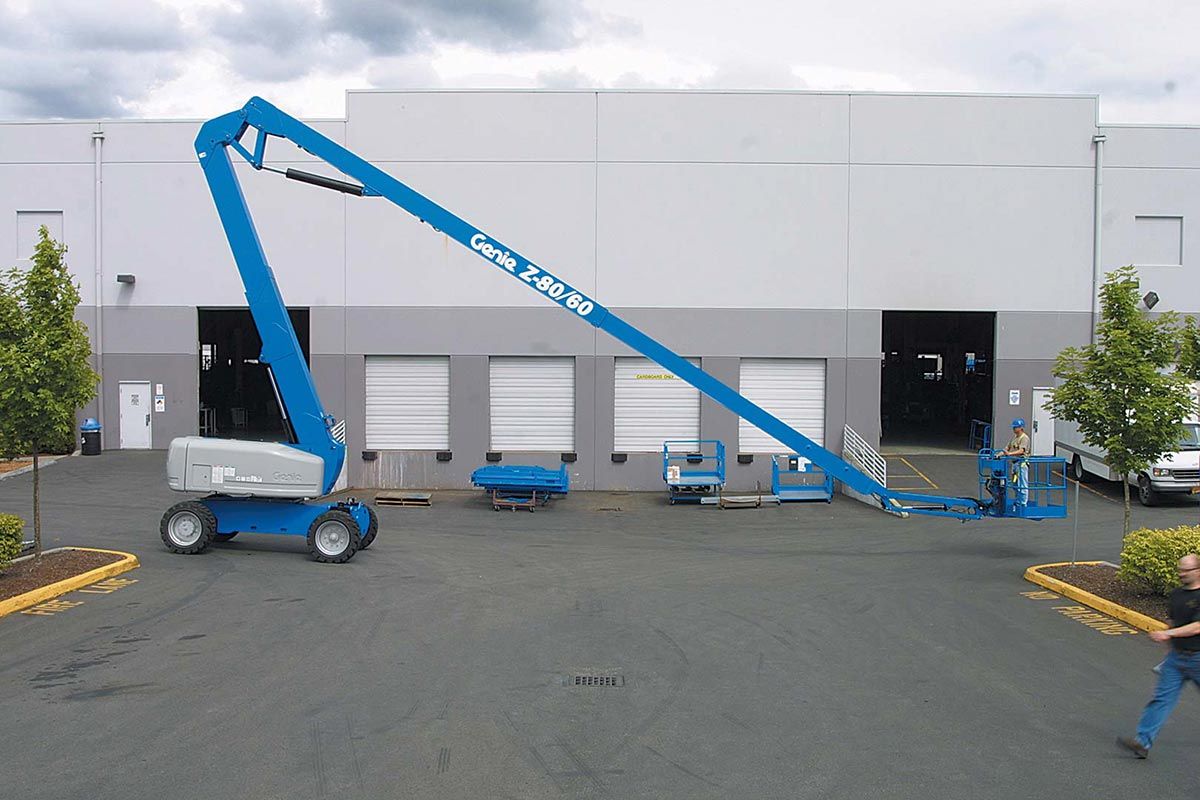

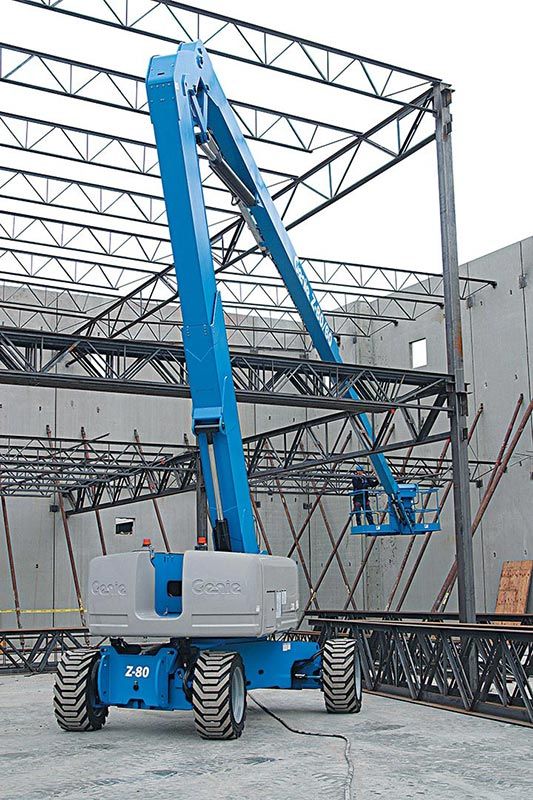

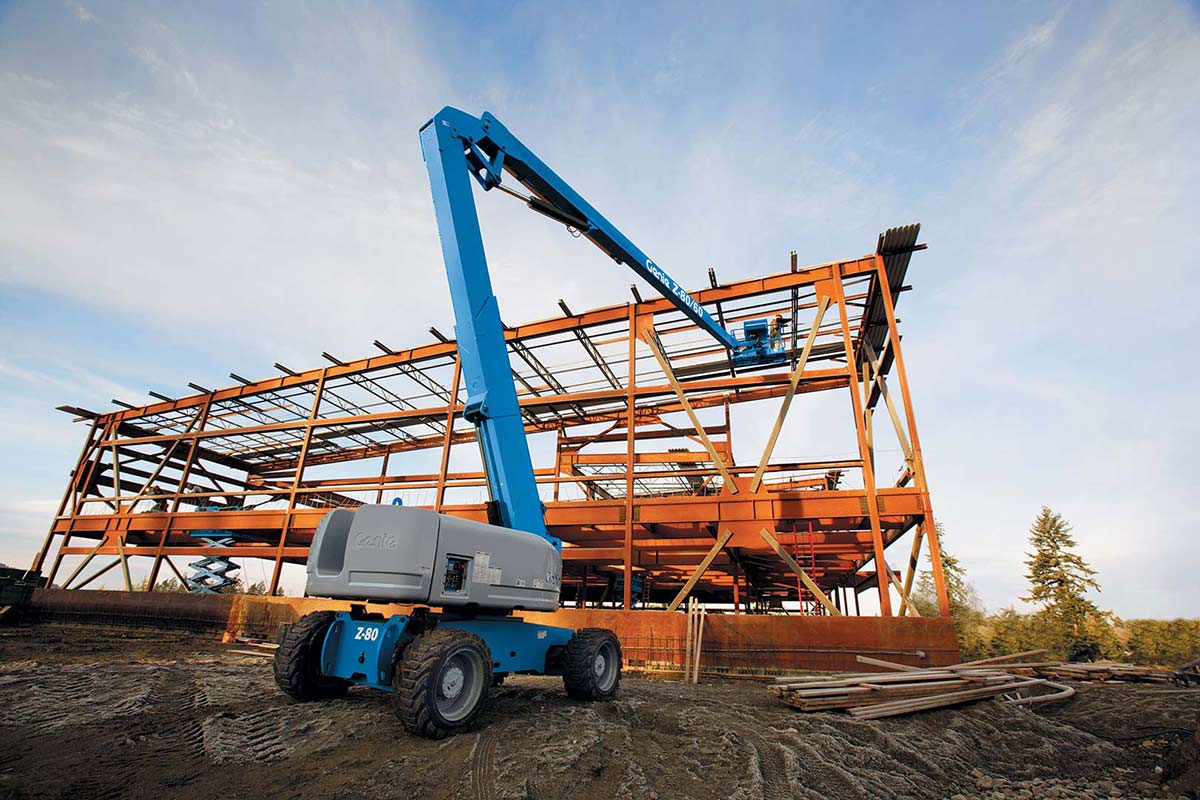

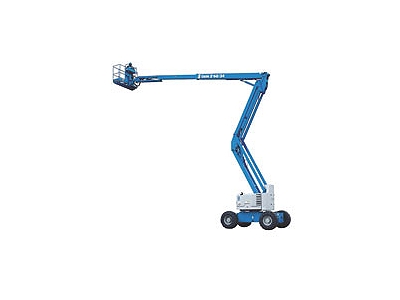

With outreach that’s second to none, the Genie® Z®-80/60 articulating boom lift delivers outstanding lifting versatility with up, out and over positioning capabilities — ideal for outdoor construction and industrial applications.

Request a Quote

THE RUNDOWN

Genie® Fast Mast™

Genie® Fast Mast™ system lowers the platform to the ground without having to lower the secondary boom; raises primary and secondary booms simultaneously

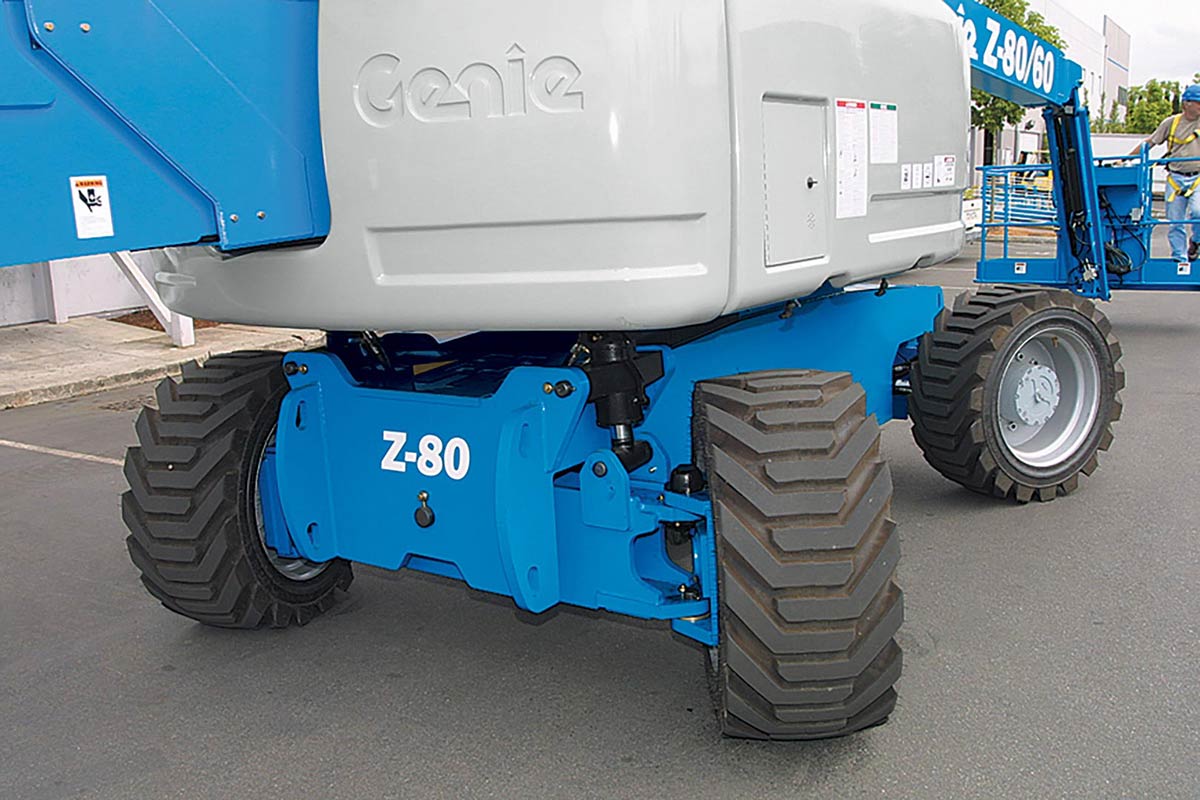

Full-time 4WD

Full-time positive traction and full-time 4WD for a smooth ride on rough ground conditions

Reverse-articulating secondary boom

Reverse-articulating secondary boom with 29 ft (8.83 m) of up and over reach and zero front arm swing

Optional Quiet Diesel Engine

Quiet diesel engine options for increased performance, gradeability and terrainability

Specifications
Boom TypeArticulating
Platform Height78ft
Platform Length36in
Platform Width96in
Weight37500lb
Lift Capacity500lb
Lift/Horizontal Reach60ft
Gradeability45%
Drive Speed3mile/h
Standard Features
  • 4WD and Positive Traction: Full-time positive traction and full-time 4WD for a smooth ride on rough ground conditions
Optional Features
  • Quiet Diesel Engine: Quiet diesel engine options for increased performance, gradeability and terrainability
