140 Next Gen

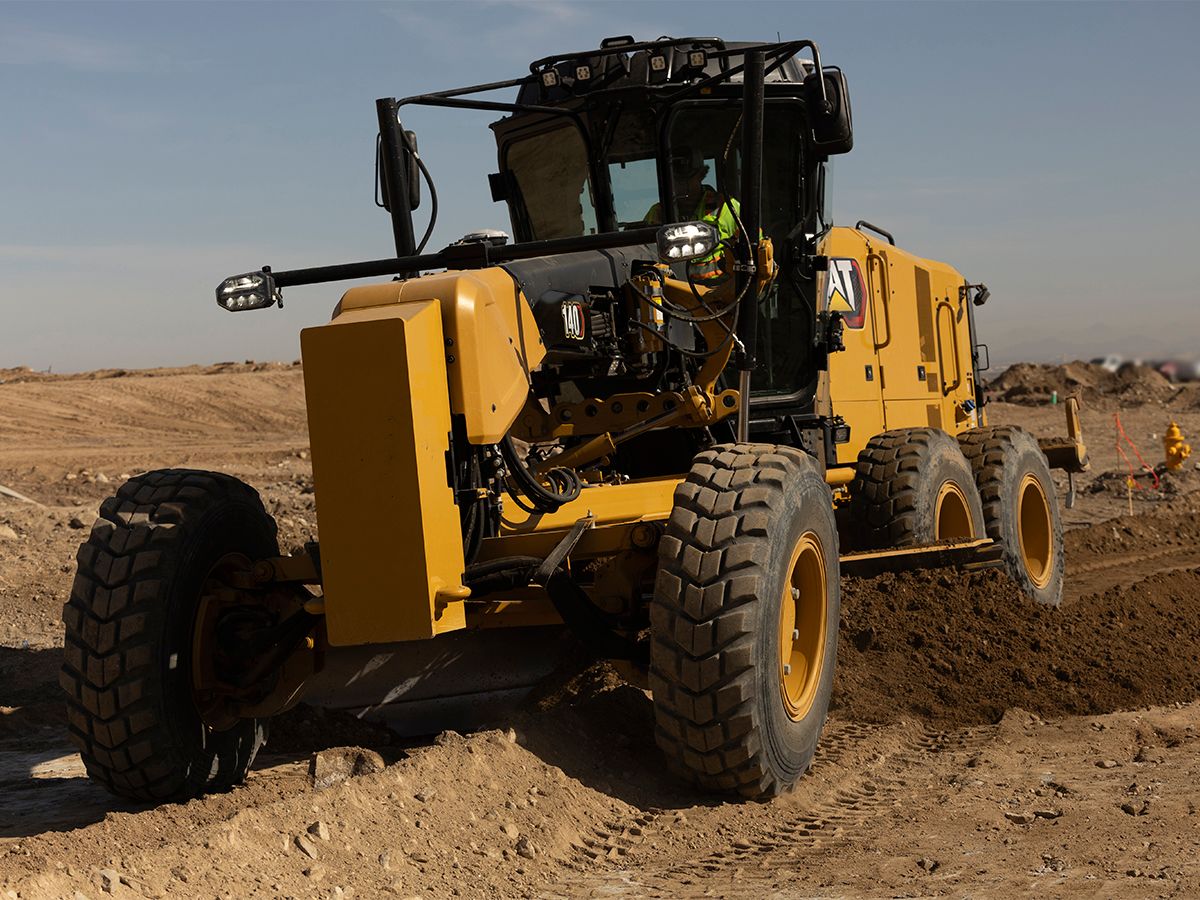

140 Motor Grader

Virtual product tour thumbnail
Virtual product tour thumbnail
Virtual product tour thumbnail
140 Motor Grader
140 Motor Grader
140 Motor Grader
140 Motor Grader
140 Motor Grader
140 Motor Grader
140 Motor Grader
140 Motor Grader
▶
▶
▶
Net Power - ISO 9249/SAE J1349
255 hp
Engine Model
Cat® C7.1
VHP Plus - Gear - Net Power - Forward 1st
169 hp
The Cat® 140 motor grader is a mid-size machine ideal for road maintenance. It delivers the right balance of power, control, and blade reach for grading, crowning, and ditching. Maintain your gravel, secondary roads in comfort with the redesigned cab.
Request a Quote
See Similar Used Options

THE RUNDOWN

Redesigned Cab
The redesigned cab provides better visibility to the ground, grouped control buttons for ease of operations, optional seat upgrades, and comfort customizations for the operator.
The redesigned cab provides better visibility to the ground, grouped control buttons for ease of operations, optional seat upgrades, and comfort customizations for the operator.
Redesigned Cab
Safety
Safe Start Every Time
The machine won’t move until you’re in the seat and ready to go. The operator presence monitor keeps the parking brake on and disables hydraulics until everything is set. When you’re traveling, hydraulic lockout keeps your implements from moving while you still have full steering control.

Stay in Control on the Move
As you pick up speed, Speed Sensitive Steering automatically adjusts to keep handling smooth and predictable. If steering pressure drops, the secondary steering system kicks in so you can safely steer the machine to a stop without losing control.

See Clearly, Day or Night
Anti-glare paint helps cut down eye strain when you’re working at night. Add the LED light package, and you’ll have the visibility you need to keep working safely and accurately after the sun goes down.

Easy Access and Built-In Protection
Fuel up from the ground—no climbing required. Walkways, perforated platforms, and grab rails help you keep three points of contact when getting on, off, or around the machine. The slip clutch and optional blade lift accumulators help absorb impacts, protecting the machine and keeping operation smooth and safe.
Safety
Safety
  • Operator presence monitor keeps the parking brake engaged and hydraulic implements disabled until the operator is seated and the machine is ready for operation.
  • Anti-glare paint eases night operation.
  • Ground-level refueling requires no climbing on the machine to fill the fuel tank.
  • Ensure three points of contact when entering and existing the machine with strategically placed walkways and grab rails.
  • Work past sundown using the LED light package option for increased nighttime visibility.
  • Speed Sensitive Steering lessens steering sensitivity as ground speed increases for greater operator confidence and control.
  • The standard Secondary Steering System's electric hydraulic pump automatically engages in case of a drop in steering pressure to ensure operator can steer the machine to a stop.
  • Hydraulic lockout disables all implement functions while still providing machine steering control. Especially useful while roading.
  • Brakes are located at each tandem wheel to eliminate braking loads on the power train. Redundant brake systems utilize accumulators to enable stopping in case of machine failure.
  • Perforated steel tandem walkways and convenient grab rails provide a sturdy platform when moving on, off and around the machine.
  • Standard Circle Drive Slip Clutch protects the standard drawbar, circle and moldboard from shock loads if the blade encounters an immovable object and also reduces the possibility of abrupt directional changes in poor traction conditions. The optional Blade Lift Accumulators help absorb impact loads by allowing vertical blade travel. This optional feature reduces wear and impact loading for enhanced operator safety.
Technology
Using the data from technology-equipped machines, get more information and insight into equipment and operations.
  1. Cat Grade Attachment Ready Option (ARO) is the building block for all Cat Motor Grader technologies.
  2. Equipment Management Technology
    1. Cat® VisionLink™ provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
    2. VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment regardless of the manufacture.* View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device - on or off the jobsite.
    3. Cat® Inspect is a mobile application that allows you to easily perform digital Preventative Maintenance (PM) checks, inspections, and daily walkarounds. Inspections can easily be integrated with other Cat data systems like VisionLink so you can keep a close eye on your fleet.
    4. Cat® Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
    5. Featured Cat Technologies
      1. Cat Grade 3D
        Cat Grade with 3D for motor graders, also called "mastless," is a machine integrated grade control system that helps you get to grade faster with more accuracy, efficiency, and productivity. Automatic blade control reduces operator inputs and the number of passes to get the job done to save you time and money. E-fence is fully calibrated from the factory.
      2. Cross Slope Assist
        Cross Slope Assist now includes Position Sensing Shift Cylinder (PSC), E-fence Blade Avoidance, and two sensors to simplify mastless upgrades. It allows the operator to manually control one end of the moldboard while the system controls the other.
      3. Attachment Ready Option
        ARO provides sensor-ready swivel mountings for faster aftermarket work tool installation.
Technology
Power to the Ground. Performance that Delivers.

Power to the Ground

A new specification is now available on Next Generation Cat® Motor Graders, showing the actual power to the ground performance. Cat updated the power strategy (called Power to the Ground) so the machine now delivers consistent power in every condition – hot or cold weather, heavy or light load. This means the grader feels more stable, more predictable, and easier to control, especially when fine‑grading.
You still get the same real‑world productivity, with smoother operation and better fuel efficiency.

More Consistent Power to the Ground
With true constant net power, the machine delivers consistent power regardless of temperature or load, providing more predictable grading performance and better machine feel and control—especially for fine grading.

Improved Grading Quality with Integrated Control Technologies
A more stable power curve allows Cat Grade with Cross Slope, Stable Blade, and 3D Grade to operate more accurately, improving automated blade control response with consistent, predictable power.

No Loss in Real-World Productivity
Next Generation Cat motor graders deliver the same legendary performance for road building, site prep, ditching, and snow removal—now with the latest design evolution.

Better Fuel Efficiency
Power to the Ground supports smoother operation and reduced fuel burn by avoiding unnecessary power spikes, allowing the machine to run in optimized power more often.
A New Power Strategy
Lower Maintenance Costs
  • Save time on daily checks with ground-level grouped filters.
  • Engine compartment doors swing wide, and side doors are removable to access service points.
  • Engage Eco mode to reduce fuel burn.
  • Get more uptime, spend less on maintenance. The reversing fan option keeps your cooling system cleaner with just a quick weekly clean.
  • Maintain roads with the standard drawbar circle moldboard with hardened circle teeth for increased durability. For tight finish grading, consider the top adjust drawbar option for applications that require maximum accuracy, and offers up to 45 percent reduction in maintenance cost over the standard.
  • Optional High Performance Circle helps eliminate hours of monthly planned maintenance for frequent inspection, wear strip replacement, and circle shoe adjustments associated with conventional circles. The HPC provides a smooth, effortless rotation of blade and assists in meeting road design elevation tolerance.
Sustainability
  • The Cat engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
  • Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or Caterpillar Machine Fluids Recommendations (SEBU6250) for details.
  • Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
  • Cat® Grade helps reduce fuel burn and greenhouse gas emissions by enabling you to achieve grade faster and more accurately by automating blade actions.
  • Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
  • VisionLink™ displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
  • Don't waste fuel idling. Cat VisionLink online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
  • Cat® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.
*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
Engine
Net Power - ISO 9249/SAE J1349255hp
Engine ModelCat® C7.1
VHP Plus - Gear - Net Power - Forward 1st169hp
VHP Plus - Gear - Net Power - Forward 2nd176hp
VHP Plus - Gear - Net Power - Forward 3rd182hp
VHP Plus - Gear - Net Power - Forward 4th192hp
VHP Plus - Gear - Net Power - Forward 5th197hp
VHP Plus - Gear - Net Power - Forward 6th205hp
VHP Plus - Gear - Net Power - Forward 7th213hp
VHP Plus - Gear - Net Power - Forward 8th233hp
VHP Plus - Gear - Net Power - Reverse 1st126hp
VHP Plus - Gear - Net Power - Reverse 2nd176hp
Bore4.1in
Stroke5.3in
Displacement1.9Gal
Number of Cylinders6
Weights
Operating Weight - Typically Equipped42543lb
Operating Weight - Typically Equipped - Front Axle11784lb
Operating Weight - Typically Equipped - Rear Axle30758.9lb
Machine Weight
Lever/Steering Wheel Weight* Tier 442168lb
Lever/Steering Wheel All-Wheel drive (AWD) Weight* Tier 443279lb
Joystick Weight* Tier 442543lb
Joystick All-Wheel Drive (AWD) Weight* Tier 443497lb
Note (1)* Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, transmission guard, rear ripper/scarifier, 14.0R24 tires on multi-piece rims, and other equipment.
Moldboard
Blade Width12ft
Power Train
Forward/Reverse Gears9 Forward / 6 Reverse
TransmissionCountershaft Torque Converter Powershift
Brakes - ServiceDual Circuit Hydraulic
Brakes - SecondaryDual Circuit Hydraulic
Brakes - ParkingSpring Applied Hydraulic Release
Hydraulic System
Circuit TypeParallel
Pump TypeVariable Piston
Pump Output*3503psi
Maximum System Pressure3698psi
Reservoir Tank Capacity15.9Gal
Note*Pump output measured at 2000 RPM rated speed
Service Refill Capacities
Cooling System11.4Gal
Diesel Exhaust Fluid Tank (Tier 4 Only)6.6Gal
Engine Crankcase5.3Gal
Fuel Tank98Gal
Hydraulic System15.9Gal
Transmission and Differential18Gal
Dimensions
Height - Top of Cab136in
Height - Front Axle Center24.1in
Height - Top of Cylinders119.8in
Height - Exhaust Stack130.4in
Length - Push Plate to Ripper405in
Length - Front Tire to Rear of Machine350.8in
Length - Between Tandem Axles59in
Width - Tire Center Lines82.2in
Ground Clearance - Rear Axle13.1in
NoteAll dimensions are approximate and apply to all 140 configurations (Non-AWD, AWD, LVR, and Joystick) unless otherwise noted.
Standards
SteeringISO 3449:2005, Level II
BrakesISO 3450:2011; AIS-143:2018
SoundISO 6396: ISO 6395
Air Conditioning System
NoteThe air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent of 2.288 metric tonnes (2.521 tons).
Standard Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

  • Adjustable steering wheel/lever controls
  • Seat belt
  • Electric throttle control
  • Fully redesigned cab with sound suppression and integrated Roll Over Protective Structure (ROPS) and Falling Object Protection System (FOPS)
  • Full color ten-inch (254 mm) liquid crystal touch screen display
  • Added storage areas
  • Information display screen
  • Entertainment radio ready
  • Cup holder
  • Cell phone holder
  • Dome interior light
  • Coat hook
  • Front wipers

SAFETY

  • Back-up alarm
  • Grab rails
  • Hydraulic brakes
  • Hydraulic system - integrated dead engine implement lower
  • Hydraulic system - integrated work port pressure relief
  • Parking brake
  • Rearview mirror
  • Side view mirrors
  • Signaling/warning horn

POWERTRAIN

  • Cat C7.1 diesel engine
  • Eco mode
  • On-demand fan
  • 43° C (109° F) standard capacity

DRAWBAR CIRCLE MOLDBOARD

  • Standard drawbar circle moldboard
  • Circle drive slip clutch

ELECTRICAL

  • Reversing lights
  • Breaker panel
  • 900 CCA standard duty batteries
  • Electric starter
  • Rear lights with LED lighting
  • Halogen lighting

SERVICE AND MAINTENANCE

  • Ground Level DEF and Fuel Fill
  • Grouped location for engine oil and fuel filters
  • Extended life coolant
  • Next Generation Filters for Fuel and Engine Oil

GUARDS

  • Transmission
Optional Equipment

NOTE

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

OPERATOR ENVIRONMENT

  • Lower front wipers
  • Mechanical suspension seat
  • Heated / cooled air suspension seat
  • Heating/cooling cab system
  • Defrost fans
  • Rear wiper
  • Cab plus
  • Rear window screen
  • Digital blade slope meter
  • Product Link

SAFETY

  • Four-point safety harness seat belt
  • Operator Presence System
  • Rearview camera
  • Secondary steering system
  • Walkways
  • Warning beacon

POWERTRAIN

  • Heavy duty starter
  • Transmission with Autoshift

DRAWBAR CIRCLE MOLDBOARD

  • Top Adjust Drawbar
  • High Performance Circle
  • Circle drive slip clutch
  • Circle saver
  • Remote Pinion Lube
  • 4.9 m (16 foot) Moldboard

ELECTRICAL

  • 145A Brushed Alternator
  • 1,400 CCA heavy duty batteries

SERVICE AND MAINTENANCE

  • Fast fuel fill ready
  • Underhood Lighting

GUARDS

  • Fender
  • Cover, under cab platform
  • Steering Cylinder Guards

VERSATILITY

  • Towing hitch
  • L3 tires
  • Sy-Klone pre-cleaner

ATTACHMENTS AVAILABLE FROM FACTORY

  • Lift Groups
  • High Performance Circle
  • Counterweight
  • Push block
  • Mid-Machine Scarifier (MMS)
  • Rear Ripper/Scarifier
  • Moldboards
  • Front Blade

ATTACHMENTS

  • Lift Groups
  • High Performance Circle
  • Counterweight
  • Push block
  • Mid-Machine Scarifier (MMS)
  • Rear Ripper/Scarifier
  • Moldboards
  • Front Blade
  • Snow Wings
  • V-Plow
  • Straight Plow
  • Brooms
