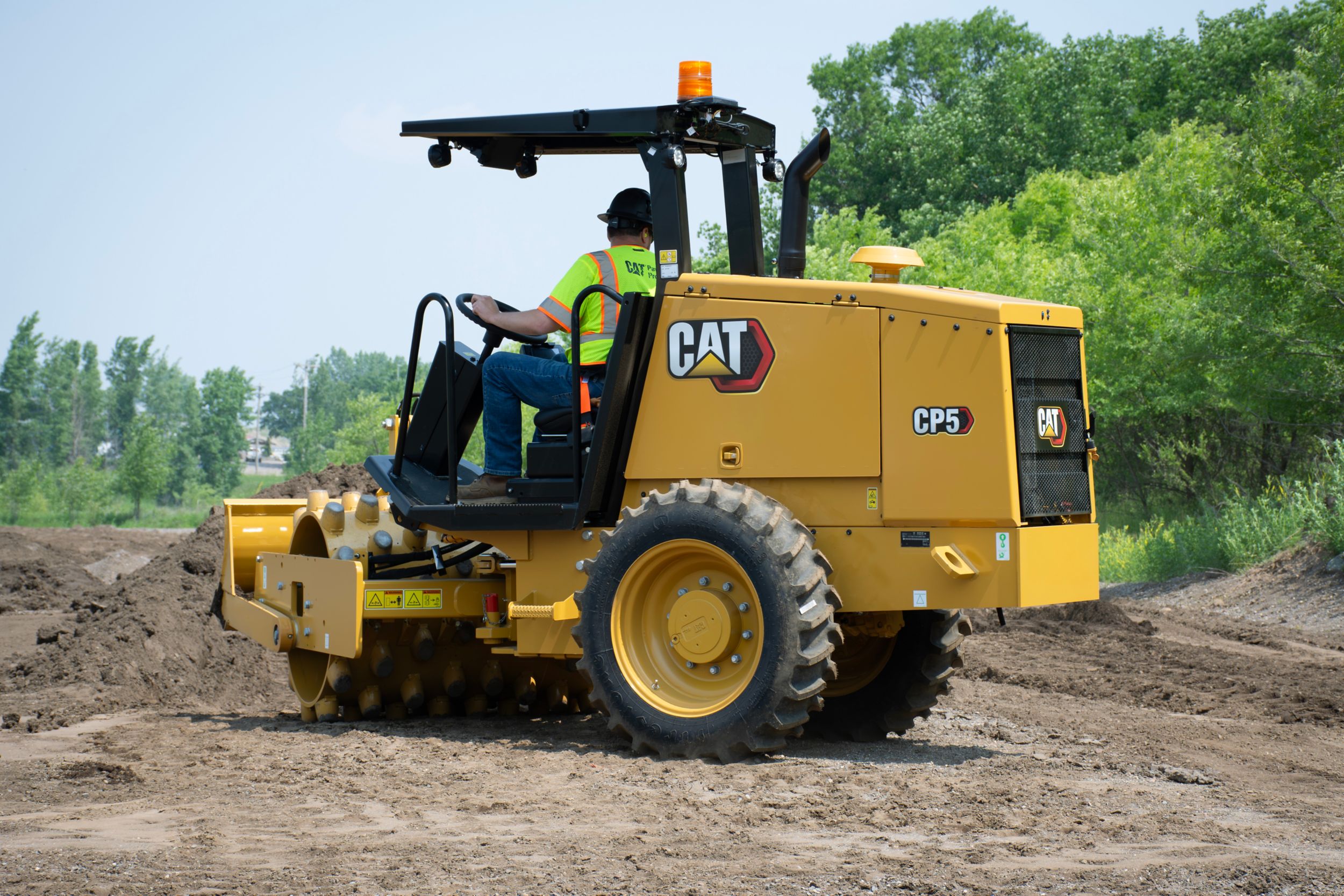

CP5 Vibratory Soil Compactor
THE RUNDOWN
Compact Size for Specific Applications

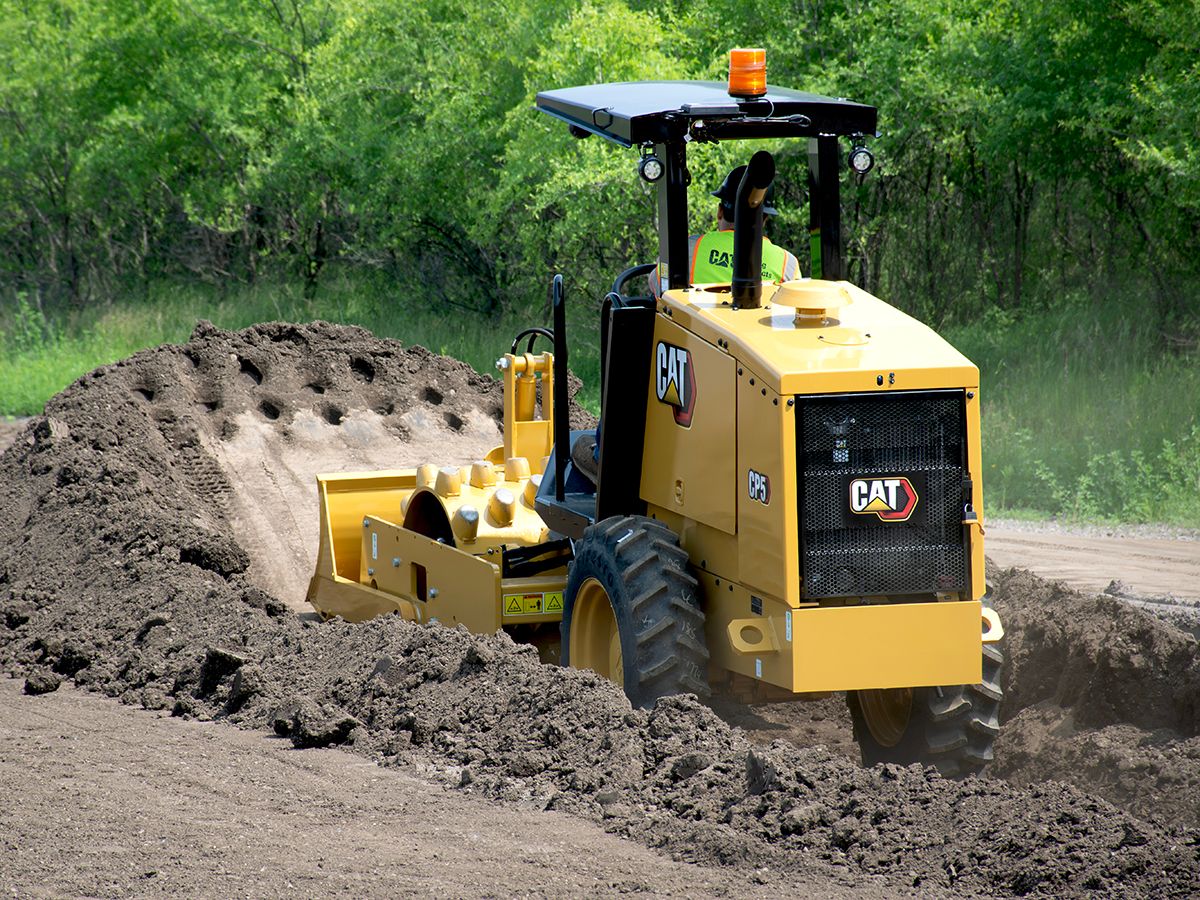

- With a narrow machine width of 1.4 m (4.6 ft), the CP5 is sized for working in trench applications or job sites with limited space.
- Ideal machine weight for light compaction of uniform layers over sewer and water pipes.

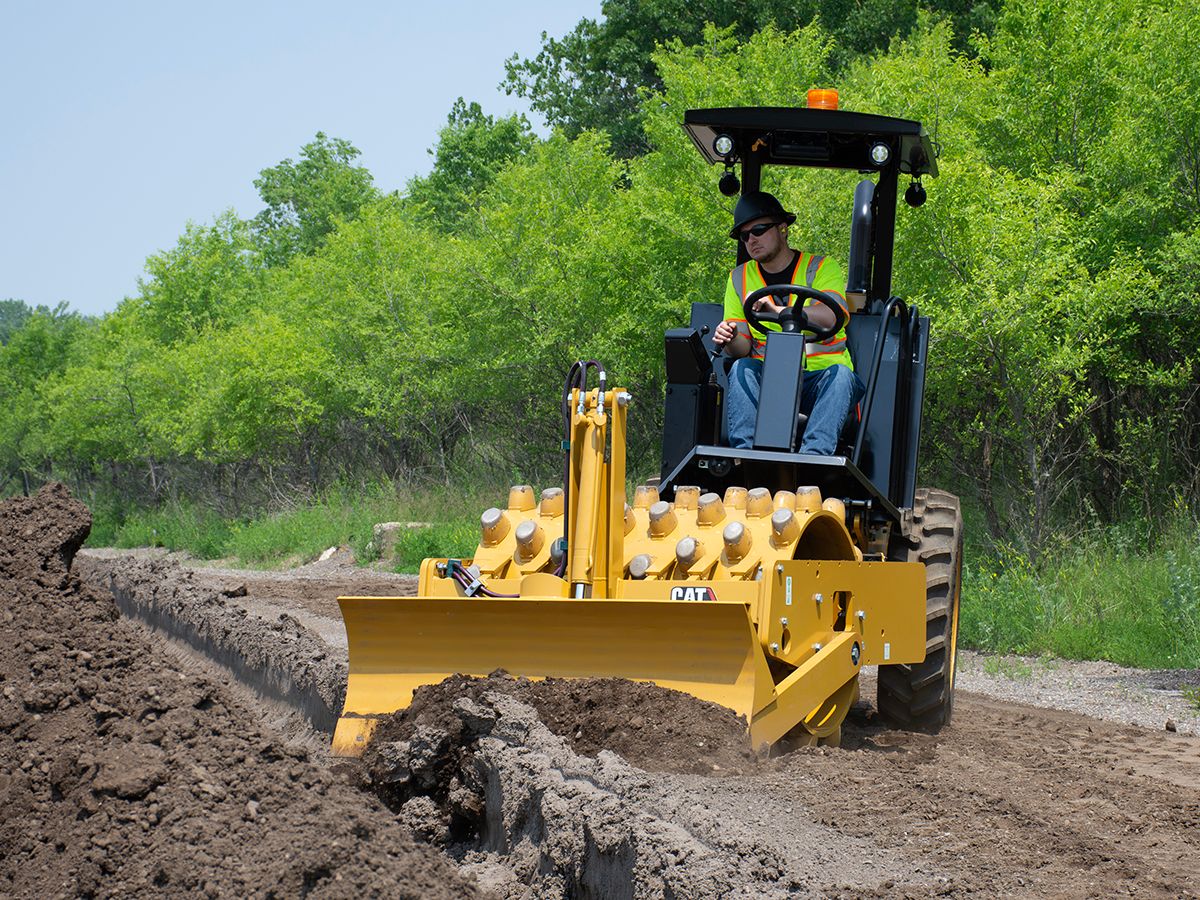

- The propel system allows the operator to stop, maintain machine position and change directions while on a grade.
- A narrow turning radius provides good maneuverability in confined work areas.

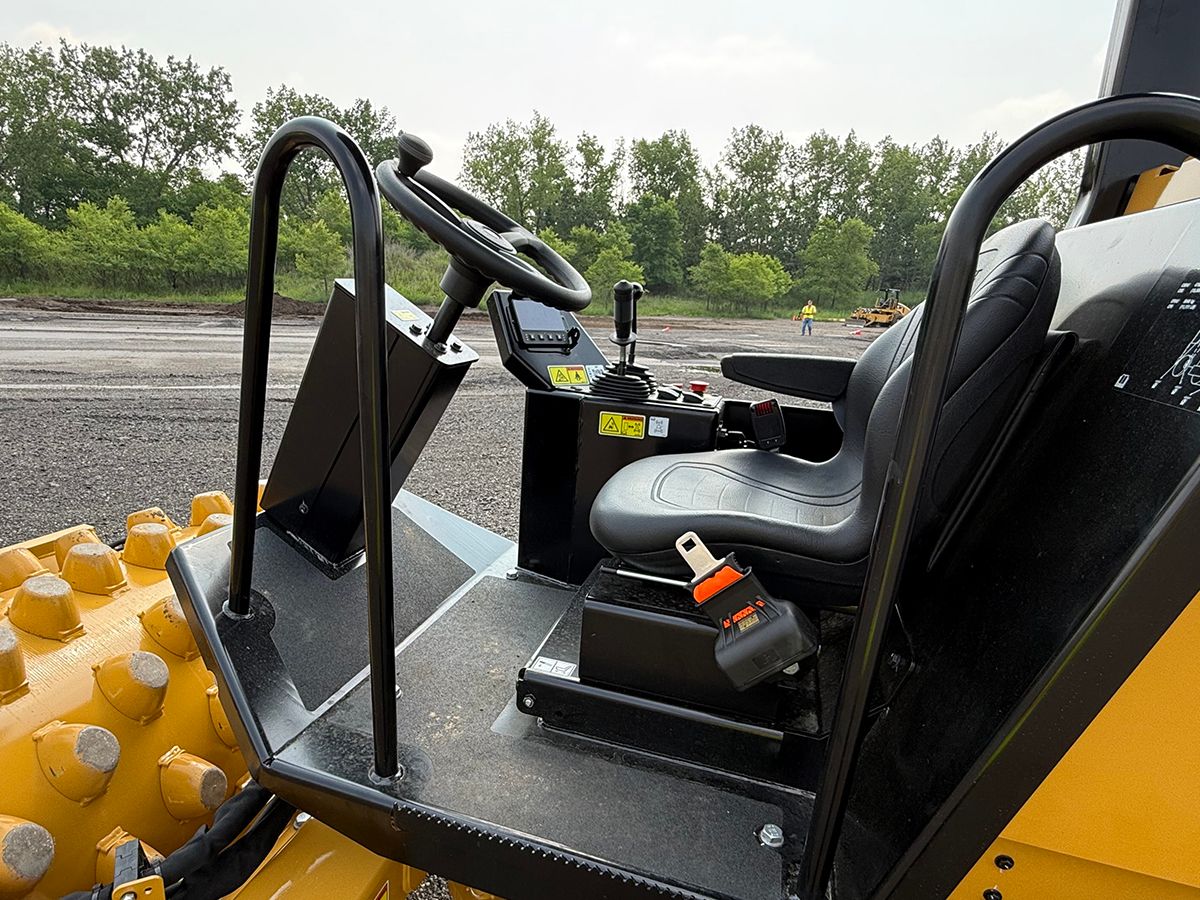

Comfortable and Ergonomic Operator Station
- A rear vision camera with a large color touchscreen display enhances visibility behind the machine, helping you work safely and confidently.
- The operator station has a multi-function LCD display and control console, an adjustable vinyl seat with a flip-up arm rest and a high-visibility retractable seat belt.
- View operational gauges and basic diagnostics on the integrated LCD screen.
- The propel lever is conveniently located to the right of the operator’s seat and provides vibratory ON/OFF control for low-effort operation.
- Designed for optimal visibility from the operator station.
- The operator platform is isolated with heavy-duty rubber mounts to reduce machine vibration transmitted to the operator.
Designed for Performance
- Powered by a quiet, fuel-efficient Cat® C2.8 engine that meets U.S. EPA Tier 4 Final emission standards. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
- Built around a dual pump propel system, with two pumps providing separate dedicated flow to the drum drive motor and rear axle motor for excellent gradeability and traction in forward and reverse.
- The limited-slip differential provides steady power by transferring torque to the tires for enhanced traction on soft, slippery surfaces.
- A variable propel speed range up to 8.8 km/h (5.5 mph) helps deliver maximum torque when climbing grades, plus the ability to move quickly around the jobsite.

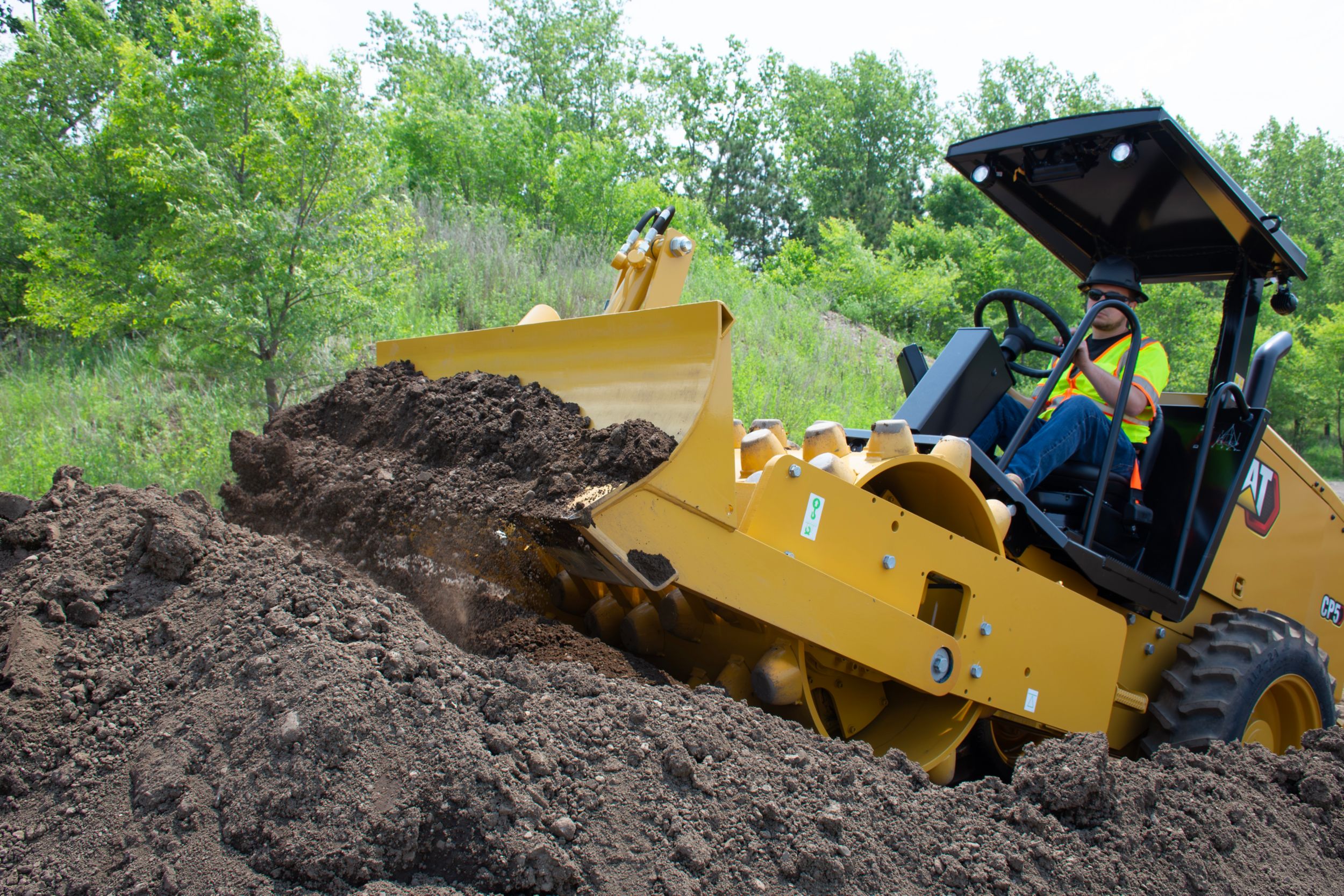

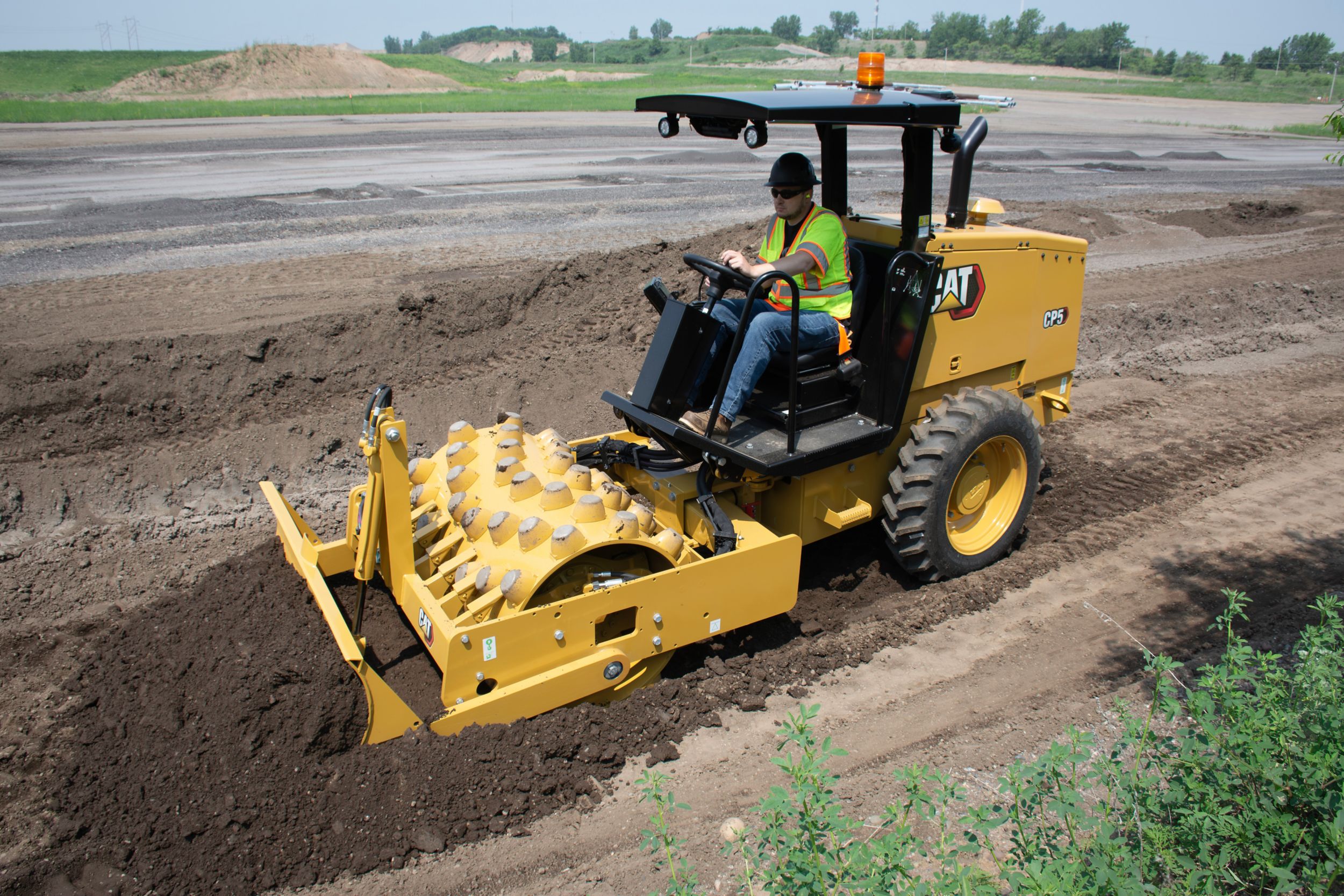

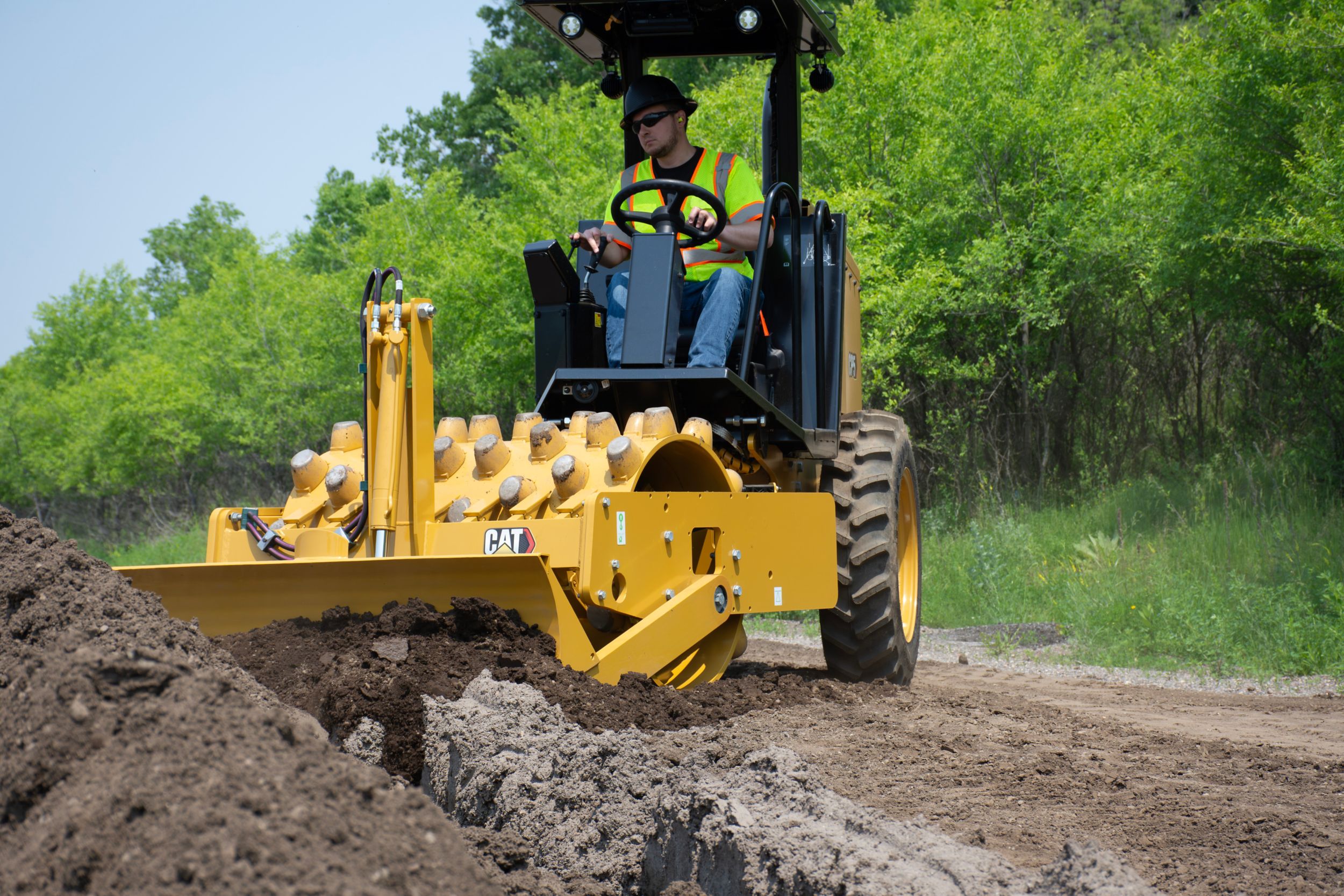

- Boost versatility with an optional blade for backfilling, knockdown and light dozing.
Durable, Field-Proven Vibratory System

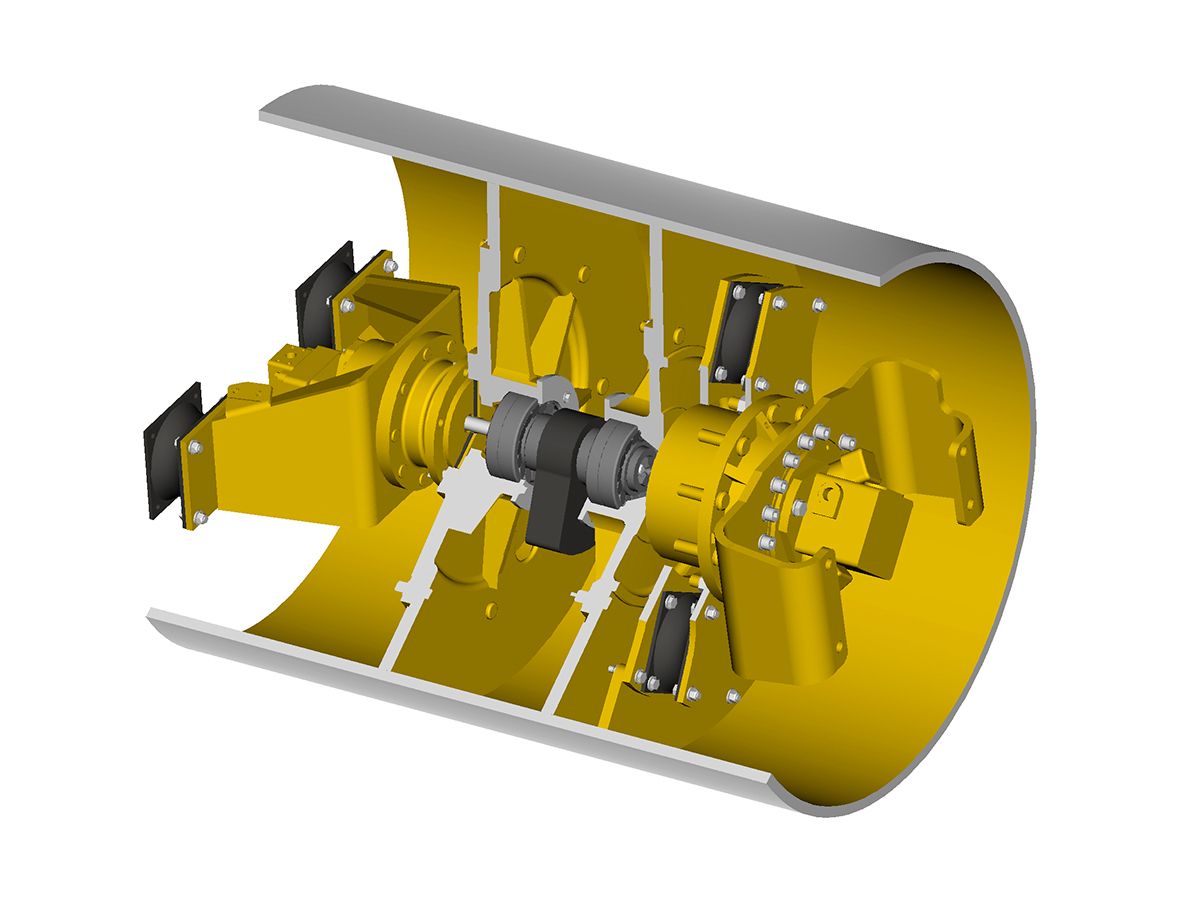

- The drum uses a reliable swinging eccentric weight design engineered to deliver high compactive effort and performance you can count on.
- A vibratory frequency of 35.8 Hz (2150 vpm) combined with optimal drum weight, enables the operator to achieve density in fewer passes.
- The large heavy-duty bearings for the eccentric weight shaft are designed for high compactive forces.
- Heavy-duty isolation mounts in the drum allow more force to be transmitted to the ground and less vibration to the drum yoke.
- The padfoot drum features unique, tapered, oval-faced pads engineered to penetrate deeper and deliver higher weight concentration to maximize compactive effort.
Reliability and Serviceability

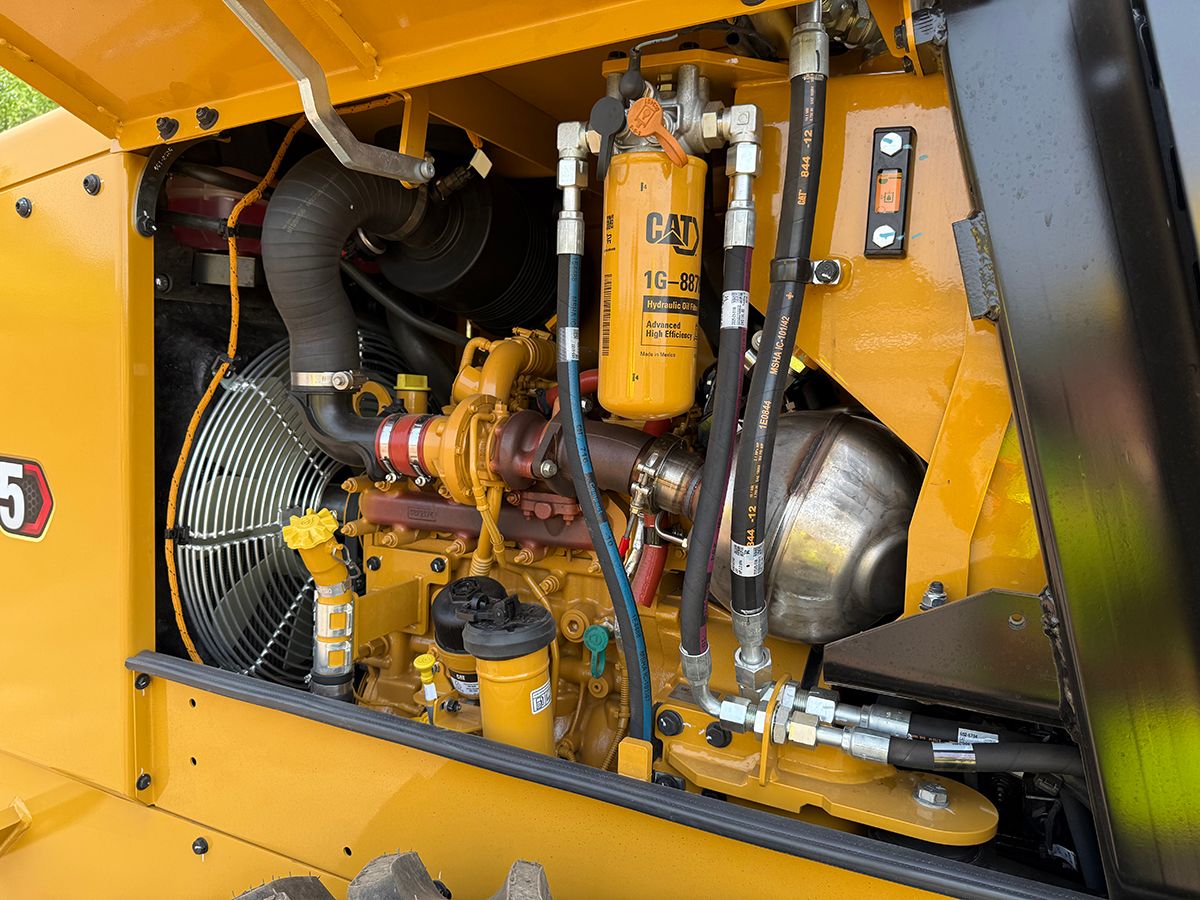

- Large doors provide ground-level accessibility to perform service and check engine oil, hydraulic fluid and coolant levels.
- The operator platform tilts forward to conveniently reach the hydraulic pumps. The hydraulic oil cooler tilts rearward for additional access to the radiator.
- A rear-mounted cooling system provides easy access for cleaning.
- Monitor fluid conditions with regular sampling to help extend change intervals up to 500 hours engine oil, 1000 hours eccentric weight housing oil, 3000 hours hydraulic oil, and 12000 hours coolant.
- Quick-connect hydraulic test ports simplify system diagnostics.
- Ecology drains provide an environmental method to drain fluids on the radiator, engine oil pan, hydraulic and fuel tank.
- Hoses and electrical harnesses are routed and clamped for increased long-term durability.
- Electrical system wiring is color-coded and numbered for easy identification and wrapped in a protective, abrasion-resistant nylon braid for longer life and reliability.
- Maintenance-free Cat batteries are mounted in the rear of the machine and are accessible through the swing-out rear grill. Cat batteries are specifically designed for maximum cranking power and protection against vibration.
- VisionLink™ takes the guesswork out of managing your entire fleet–regardless of size or equipment manufacturer.* The CP5 tracks maintenance needs, machine hours and location, through interactive dashboards on your mobile device or desktop, helping you make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
Engine
| Gross Power | 75.8hp |
| Engine Power - ISO 14396 | 74.3hp |
| Net Power - ISO 9249 | 72hp |
| Net Power - SAE J1349:2011 | 72hp |
| Engine Model | Cat® C2.8 |
| Emissions | U.S. EPA Tier 4 Final |
| Build Number | 04A |
| Stroke | 4.3in |
| Bore | 3.5in |
| Note (1) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (2) | Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
Weights
| Operating Weight - With ROPS/FOPS Canopy | 10307lb |
| Weight - Drum with ROPS/FOPS Canopy | 4872lb |
| Note (1) | Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. |
Vibratory System
| Vibratory Frequency - Standard | 2150VPM |
| Nominal Amplitude - High | 0.051in |
| Centrifugal Force - Maximum | 17535lb |
Service Refill Capacities
| Fuel Tank Capacity | 29.9gal (US) |
| Cooling System | 4.1gal (US) |
| Engine Oil - With Filter | 2.2gal (US) |
| Eccentric Weight Housings (combined) | 14gal (US) |
| Axle and Final Drives | 1.9gal (US) |
| Hydraulic Tank | 9.4gal (US) |
Dimensions
| Compaction Width | 50in |
| Overall Length | 164in |
| Overall Length - With Blade Option | 179in |
| Overall Width | 55in |
| Overall Width - With Blade Option | 62in |
| Maximum Height | 99in |
| Drum Diameter - Over Pads | 40in |
| Optional Blade Height | 22in |
| Wheel Base | 88in |
Operating Specifications
| Ground Clearance | 13.7in |
| Curb Clearance | 13.5in |
| Turning Radius - Inside Drum Edge | 103in |
| Travel Speed - Maximum | 5.5mile/h |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
OPERATOR ENVIRONMENT
- ROPS/FOPS Canopy with Handrails, Anti-skid Platform, Footrest
- Vinyl Non-suspension Seat
- LCD Display with Lockable Vandalism Guard
- Rear Vision Camera System with Color Touchscreen Display
- High Visibility 76 mm (3 in) Seat Belt
- 12-Volt Power Outlet
- Horn, Backup Alarm
VIBRATORY SYSTEM
- Padfoot Drum - Oval Pads
- Single Amplitude, Single Frequency
- Adjustable Steel Scrapers
CAT TECHNOLOGY
- VisionLink™
POWERTRAIN
- Cat® C2.8 Engine
- Air Cleaner, Dual Element
- Two-Speed Throttle Switch
- Dual Propel Pumps; One for Drum Drive, One for Rear Axle
- Fuel Filter, Water Separator, Priming Pump, Water Indicator
- Radiator/Hydraulic Oil Cooler
- Dual Braking System
- Single-Speed Hydrostatic Transmission
- Limited Slip Differential
ELECTRICAL
- 12-Volt Electrical System
- 85-Amp Alternator
- 600 Cold-cranking Amps Battery Capacity
OTHER
- Lockable Engine Enclosure, Hydraulic and Fuel Tanks
- Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
- Scheduled Oil Sampling (S•O•S℠) Ports: Engine Oil, Hydraulic Oil, and Coolant
- LED Working Lights (4)
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
VIBRATORY SYSTEM
- Leveling Blade
OTHER
- Amber Rotating Beacon
