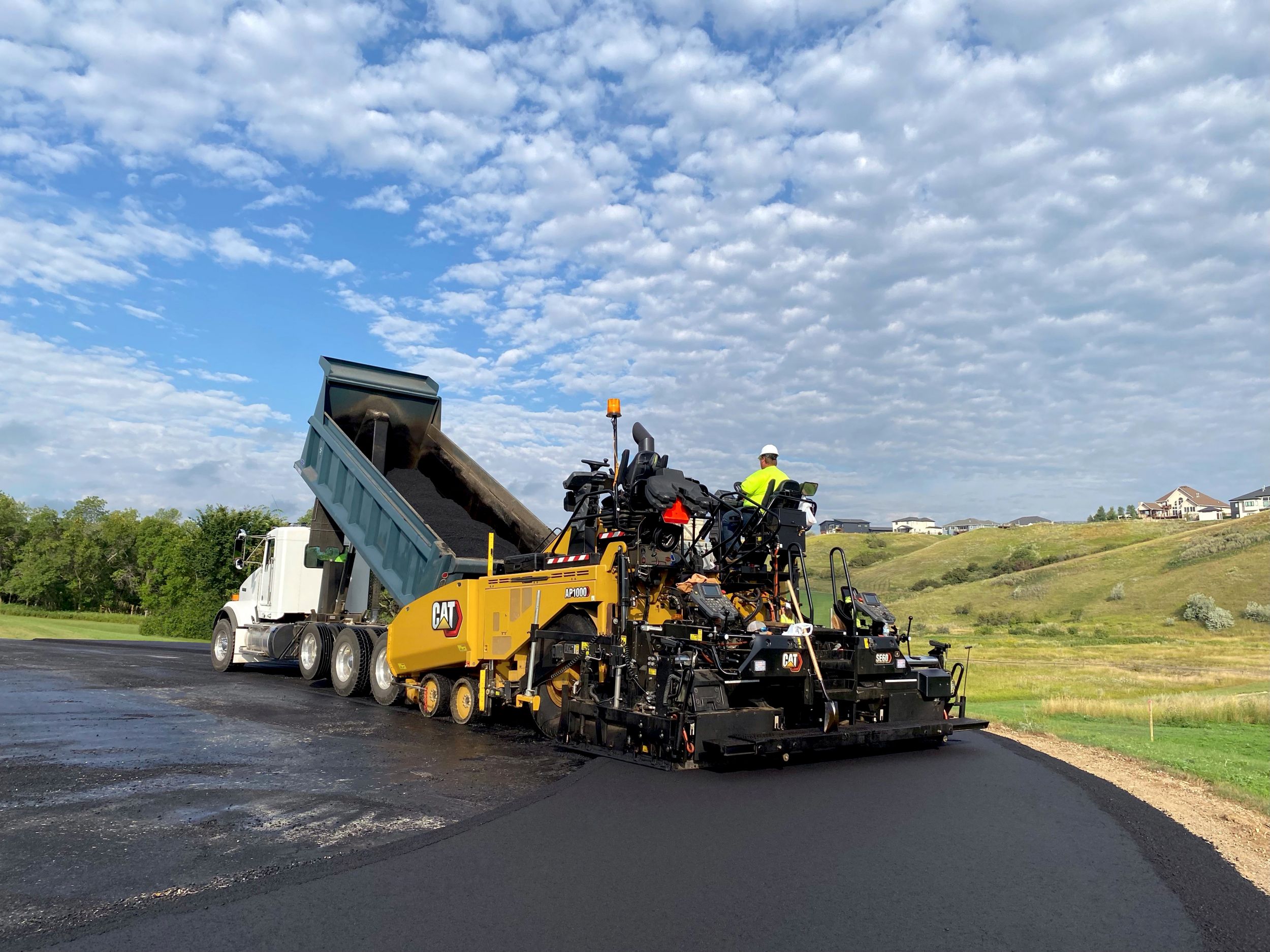

AP1000
THE RUNDOWN
High Return on Investment
- Exclusive 70 kW integrated generator delivers fast, reliable screed heating and is designed for long life by the same team that developed the D7E electric drive dozer.
- Fast heating screed leads to more daily production, heating time in as little as 15 minutes.
- Excellent turning capability, fast travel leads to increased production.
- Exclusive air flow design improves operating conditions for the crew and keeps components cooler for lasting durability.
Technology That Works For You
- Pave Start Assistant (option) saves set-up profiles for repeatable use on future job sites including: tow-point height, screed heat temperature, paving speed, paving width, paving depth, crown, extender slope and height, screed assist, and screed locking features.
- A hopper level sensor (option) with temperature indication keeps the operator informed of material height and delivery temperatures, indicators are located in each tractor display.
- Exclusive screed heating system monitors elements for failure conditions and helps eliminate unnecessary replacement.
- Cat® Grade Control option is integrated into the tractor and screed displays for optimized operator efficiency.
- Thermal mapping (option) utilizes an infra red camera mounted on a fixed-position mast that captures the entire width of the asphalt surface behind the screed. An LCD display mounted near the screed console provides real-time visibility to the surface being paved.
Quality Results, Higher Earnings

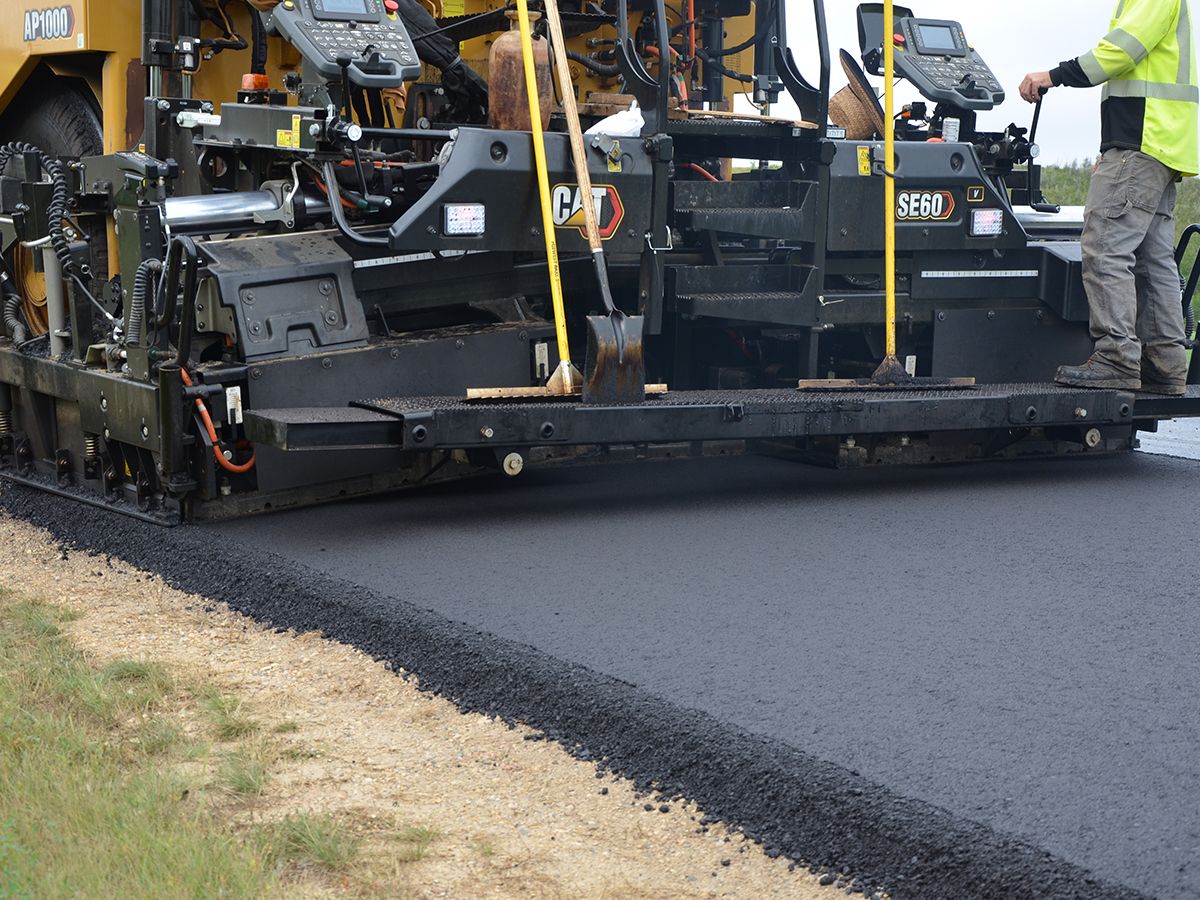

- Versatile screed designs deliver excellent ride, density, and mat texture while providing superior adjustment; available with front-mount extenders, rear-mount extenders, or tamper-bar systems.
- The optional Cat® SDX Screed Plate System is designed to increase density and smoothness. The system is available for the SE60 V and SE60 V XW Asphalt Screeds.
- Tow-point utilizes exclusive linkage design for optimal screed flotation.
- Exclusive 2-speed proportional control on the screed extenders.
- Cat Grade Control is a factory-integrated guidance system that helps remove irregularities from the surface and control mat thickness for increased production, lower operating costs, and higher profitability.
Low Owning and Operating Costs
- Exclusive Eco-mode and Automatic Engine Speed Control, reduce fuel consumption and lower sound levels for better comfort and communication.
- 4-pump feeder system is designed for high production in Eco-mode, leads to lower fuel consumption.
- Million cycle switches provide reliability.
- Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement.
- Heating elements slide out for easy replacement.
- Machined screed frames simplify screed plate replacement.
- Enhanced hopper flashing with improved memory and temperature resiliency offers better performance during truck exchanges.
More Comfort
- Ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment.
- Dual operating station provide back-up capability and complete control from either side of the machine, each station can swing-out beyond the frame for good all-around visibility.
- Heated seat option, pneumatic suspension, multiple adjustments, and tilting consoles provide day-long comfort.
- Eco-mode provides low sound levels that supports clear communication with the crew.
- High visibility 76 mm (3") seat belt helps with crew safety compliance.
- USB port simplifies software updates.
- Cup holders offer convenience.
Easy Viewing Displays
- Touch-screen displays with adjustable brightness control enable operators to fine-tune performance in various lighting conditions.
- Touch-screen access simplifies activation of the generator and auxiliary power, while also providing easy adjustments to screed plate heating temperatures, tamper and vibratory speeds, Cat Grade Control (option), and stored operator preferences.
- Operating displays can be tailored to specific language requirements with multiple options available.
VisionLink™ Telematics
- VisionLink™ is a cloud based software application that provides data to your desktop or mobile device, taking the guesswork out of fleet management with key insights to maximize performance – regardless of fleet size or equipment manufacturer.
- The system provides maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and other machine data to your mobile device, desktop or through an API to other software applications.
Service and Repair
- The cooling system is available with optional pre-filtration to help prevent buildup and simplify cleaning. Four interchangeable filters located in the center housing on the top deck help prevent fines build-up.
- The engine oil filter and drain on the AP1000 and AP1055 are mounted remotely inside the left compartment near the Diesel Exhaust Fluid (DEF) tank, making them easily accessible.
- Paver and screed service and repair kits include the parts necessary to complete specific repairs.
- Cat genuine parts are manufactured to precise specifications and designed for optimal performance and maximum uptime.
- Repair kits are identified by a single part number to make ordering easy.
- Select kits are available to be packaged as a kit by the dealer for over the-counter purchases or through the dealer service shop.
Dimensions
| Paving Range with SE60 FM | 3.0 m - 7.8 m (10' - 25' 6") |
| Paving Range with SE60 V | 3.0 m - 7.65 m (9' 10" - 25') |
| Paving Range with SE60 V XW | 3.0 m - 7.5 m (10' - 24' 6") |
| Paving Range with SE60 VT XW | 3.0 m - 6 m (10' - 19' 6") |
| Operating Length | 22.3ft |
| Operating Width | 10.8ft |
| Overall Height | 12.3ft |
| Transport Length | 20.9ft |
| Transport Width | 11.9ft |
| Transport Height | 9.8ft |
Engine
| Engine Power (1) | 225hp |
| Engine Model | Cat C7.1 |
Operating Specifications
| Maximum Travel Speed | 12mile/h |
| Maximum Paving Speed | 250ft/min |
| Maximum Paving Speed - With Tamper Bar Screed | 82ft/min |
| Inside Turn Radius | 4.5ft |
| Maximum Throughput Capacity | 1766ton(US)/h |
Weights
| Operating weight with SE60 FM | 42,620lb |
| Operating weight with SE60 V | 42,360lb |
| Operating weight with SE60 V XW | 43,848lb |
| Shipping Weight - Paver Only | 34,228lb |
Service Refill Capacities
| Fuel Tank Capacity | 92gal (US) |
| DEF Tank | 5gal (US) |
| Cooling System - Total | 12gal (US) |
| Hydraulic Oil Tank | 58gal (US) |
| Washdown Spray Tank | 7.9gal (US) |
Standard Equipment
Operating Environment
- Dual operating stations
- Steering guide
- Ventilation system
Powertrain
- Automatic engine speed control
- Cat C7.1 Engine
- Cooling fan - variable speed
- Eco-mode
Electrical System
- 1400 CCA batteries
- 100 amp alternator
- 12-volt power receptacle
- Automotive type fuse system
- Cat Electronic Technician
- Generator - 70 kW
- Machine security
- Remote jump start receptacle
Material Delivery
- Material feed sensor_contact
- Push-roller-adjustable
Service and Maintenance
- Extended-life coolant
- Ground level engine air-filter access
- Extended life hydraulic oil
- Scheduled oil sampling ports
- Remote access drains
- Sight gauges, engine coolant, hydraulic oil
Safety
- Alarm - backup
- Horn
- Lights - working
- Mirror package
- Vandal covers
Optional Equipment
Operating Environment
- Air-ride seat
- Hard top canopy
- Deceleration pedal
- Heated seats
- Side shields
- Towpoint indicator (2nd)
- Umbrella
- Screen visor
- Windshield
Technology
- Cat Grade Control
- Hopper level and material height sensor
- Pave start assistant
- Thermal mapping
- VisionLink™ telematics
Powertrain
- All wheel drive
- Ballast_front weights
- Front wheel assist
- Radial drive tires
- Sand rib drive tires
Electrical System
- Auxiliary power panel_6.6 kW
Material Delivery
- Auger extension
- Cat SDX Screed Plates
- Leveling devices
- Mainframe extensions_manual
- Mainframe extensions_power
- Material feed sensor_sonic
- Power folding front apron
- Truck hitch
- Washdown pump and reel
- Washdown tank
- Wide width paving packages
Service and Maintenance
- Service repair kits
- Uptime kits
Safety
- Lights_roading
- Warning_LED safety beacons
Screed Choices
- SE60 FM Screed
