Caterpillar 140M2 AWD 0R9G00312

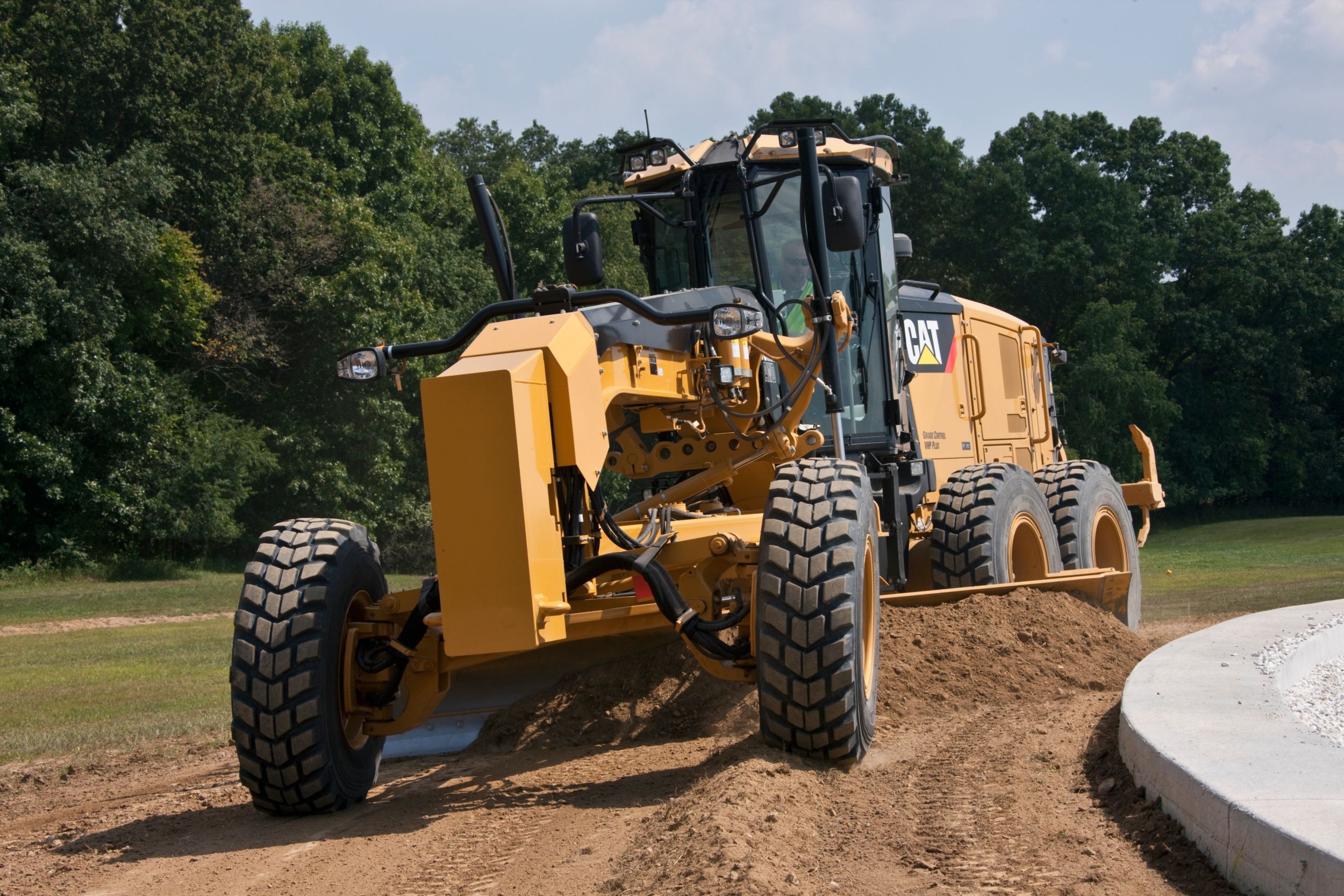

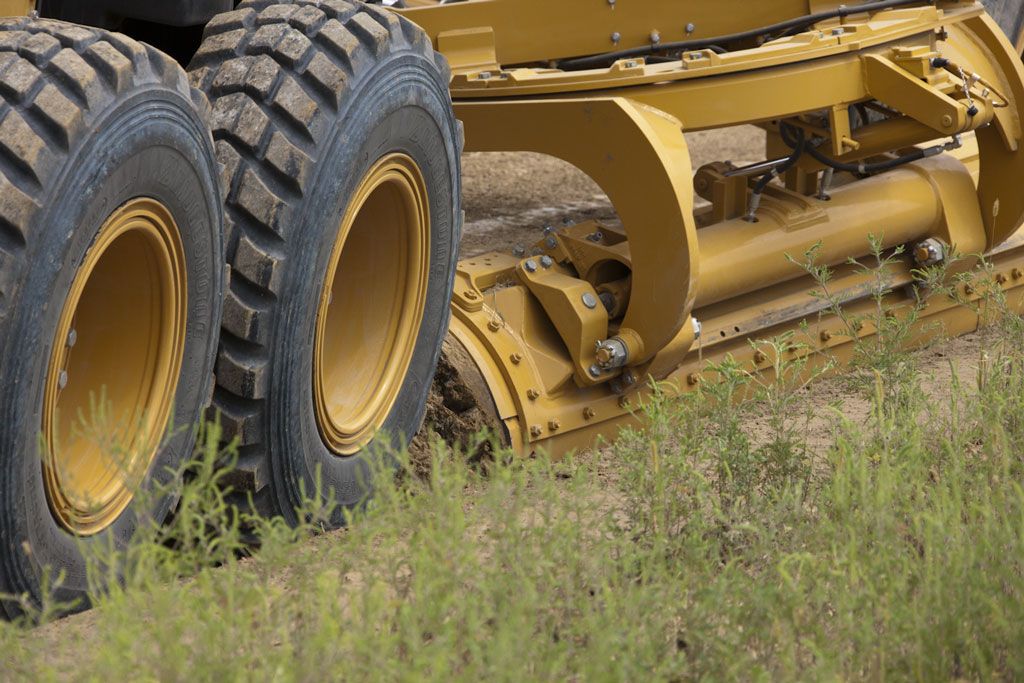

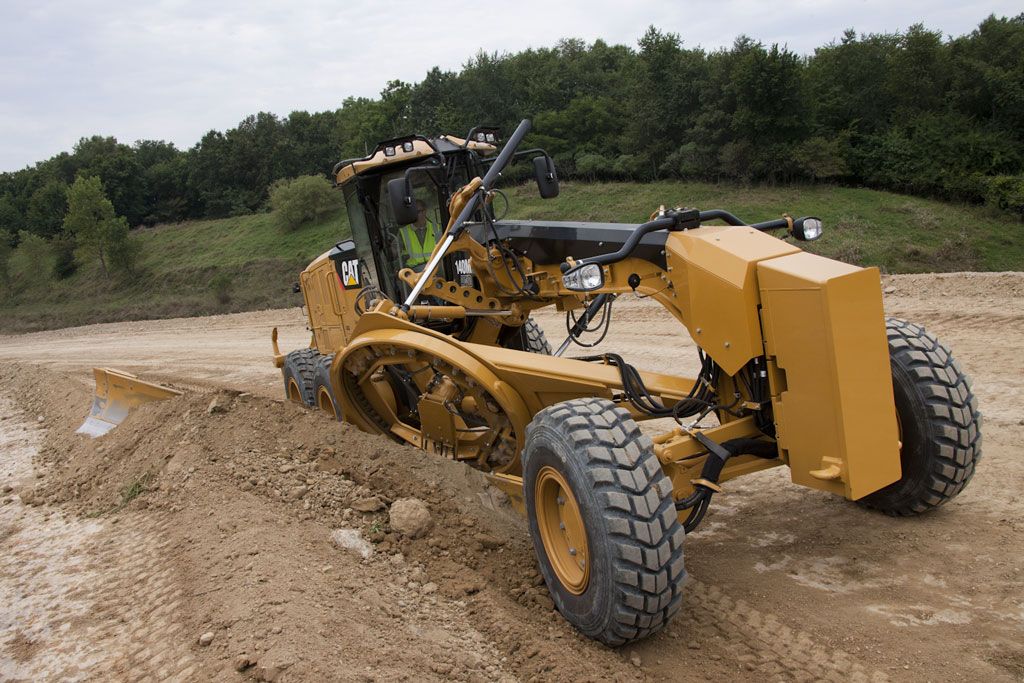

Caterpillar 140M2 AWD Motor Grader

140M2 AWD Motor Grader
140M2 AWD Motor Grader
140M2 AWD Motor Grader
140M2 AWD Motor Grader
140M2 AWD Motor Grader
140M2 AWD Motor Grader
▶
▶
▶
▶
▶
▶
▶
Daily
$1,725
Weekly
$4,422
Monthly
$11,636
The M Series 2 continues the legacy of quality already established by Cat® Motor Graders. The extensive validation program, combined with improvements to the manufacturing process, allows Caterpillar to further enhance our quality. The end result of this development process is a motor grader line with breakthrough technologies, tested in the field and built around real applications and real customer needs. M Series 2 Motor Graders meet U.S. EPA Tier 4 Interim/EU Stage IIIB emission standards.
See Similar Used Options
Catapillar Limited Time Offers

Limited-Time Offers

See Offers

THE RUNDOWN

Operator Station
Steering and Implement Controls
Emissions Technology
Engine
Power Train
Structures and DCM
“Smart” Machine Systems
All-Wheel Drive (AWD)
Hydraulics
Integrated Technologies
Work Tools and Attachments
Safety
Customer Support
Sustainability
Engine
Engine ModelCat® C9.3 ACERT™
Bore4.5in
Stroke5.9in
Speed at Rated Power2,100 rpm
EmissionsU.S. Tier 4 Interim/EU Stage IIIB
High Ambient - Fan Speed - Standard1,400 rpm
Maximum Torque920lb/ft
AWD Range - Net151-196 kW (202-263 hp)
Standard Capability109°F
Torque Rise50%
AWD Range - Net - Metric151-196 kW (205-267 hp)
VHP Plus Range - Net - Metric144-181 kW (196-246 hp)
VHP Plus Range - Net144-181 kW (193-243 hp)
Displacement567.5in³
Number of Cylinders6
Derating Altitude10000ft
High Ambient - Fan Speed - Maximum1,550 rpm
High Ambient - Fan Speed - Minimum500 rpm
High - Ambient Capability122°F
Power Train
Forward/Reverse Gears8 Fwd/6 Rev
TransmissionDirect Drive, Powershift
Brakes - ServiceMultiple Oil Disc
Brakes - Service - Surface Area3565in²
Brakes - ParkingMultiple Oil Disc
Brakes - SecondaryDual Circuit
Hydraulic System
Circuit TypeParallel
Pump TypeVariable Piston
Pump Output55.7gal/min
Maximum System Pressure3500psi
Reservoir Tank Capacity15.85gal (US)
Standby Pressure609psi
Operating Specifications
Top Speed - Forward29mile/h
Top Speed - Reverse22.9mile/h
Turning Radius - Outside Front Tires24.93ft
Steering Range - Left/Right47.5°
Articulation Angle - Left/Right20°
Forward - 1st2.5mile/h
Forward - 2nd3.4mile/h
Forward - 3rd5mile/h
Forward - 4th6.9mile/h
Forward - 5th10.6mile/h
Forward - 6th14.5mile/h
Forward - 7th19.9mile/h
Forward - 8th29mile/h
Reverse - 1st2mile/h
Reverse - 2nd3.7mile/h
Reverse - 3rd5.4mile/h
Reverse - 4th8.4mile/h
Reverse - 5th15.7mile/h
Reverse - 6th22.9mile/h
Service Refill
Fuel Capacity110gal (US)
Cooling System14.8gal (US)
Hydraulic System - Total26.4gal (US)
Hydraulic System - Tank16.9gal (US)
Engine Oil7.9gal (US)
Transmission - Differential - Final Drives17.2gal (US)
Tandem Housing - Each16.9gal (US)
Front Wheel Spindle Bearing Housing0.13gal (US)
Circle Drive Housing1.8gal (US)
Frame
Drawbar - Width3in
Circle - Diameter60.2in
Circle - Blade Beam Thickness1.6in
Drawbar - Height6in
Front Frame Structure - Height12.6in
Front Frame Structure - Width10in
Drawbar - Thickness0.5in
Front-Top/Bottom Plate - Width12in
Front-Top/Bottom Plate - Thickness0.87in
Front Axle - Height to Center23.6in
Front Axle - Wheel Lean - Left/Right18°
Front Axle - Total Oscillation per Side32°
Tandems
Height19.9in
Width8.3in
Sidewall Thickness - Inner0.63in
Sidewall Thickness - Outer0.71in
Drive Chain Pitch2in
Wheel Axle Spacing59.95in
Tandem Oscillation - Front Up15°
Tandem Oscillation - Front Down25°
Moldboard
Blade Width12ft
Moldboard - Height24in
Moldboard - Thickness0.87in
Arc Radius16.3in
Throat Clearance6.5in
Cutting Edge Width6in
Cutting Edge Thickness0.6in
End Bit - Width6in
End Bit - Thickness0.6in
Blade Pull - Base GVW25765lb
Blade Pull - Maximum GVW34072lb
Blade Down Pressure - Base GVW16365lb
Blade Down Pressure - Maximum GVW29196lb
Blade Range
Circle Centershift - Right28.7in
Circle Centershift - Left27.4in
Moldboard Sideshift - Right26in
Moldboard Sideshift - Left20.1in
Maximum Blade Position Angle90°
Blade Tip Range - Forward40°
Blade Tip Range - Backward5°
Maximum Shoulder Reach Outside of Tires - Right77.87in
Maximum Shoulder Reach Outside of Tires - Left70.5in
Maximum Lift Above Ground18.9in
Maximum Depth of Cut28.1in
Ripper
Ripper Shank Holder Spacing21in
Ripping Depth - Maximum16.8in
Ripper Shank Holders5
Penetration Force20693lb
Pry-Out Force27655lb
Machine Length Increase, Beam Raised40.6in
Scarifier
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holders11-May
Front, V-Type - Working Width47.4in
Mid, V-Type - Scarifier Shank Holders11
Mid, V-Type - Working Width46.6in
Mid, V-Type - Scarifier Shank Holder Spacing4.6in
Front, V-Type - Scarifying Depth, Maximum40.6in
Rear - Scarifying Depth, Maximum16.8in
Front, V-Type, 5 or 11 Tooth - Working Width40.6in
Front, V-Type, 5 or 11 Tooth - Scarifying Depth, Maximum18.4in
Front, V-Type, 5 or 11 Tooth - Scarifier Shank Holder Spacing4.6in
Front, V-Type - Scarifier Shank Holders11-May
Rear - Ripping Depth, Maximum16.8in
Front, V-Type - Scarifier Shank Holder Spacing18.4in
Mid, V-Type - Scarifying Depth, Maximum11.5in
Rear - Working Width84in
Rear - Scarifier Shank Holders9
Rear - Scarifier Shank Holder Spacing10.5in
Weights
Operating Weight - Typically Equipped45652lb
Gross Vehicle Weight - Maximum - Front Axle17009lb
Gross Vehicle Weight - Maximum - Rear Axle37860lb
Operating Weight - Typically Equipped - Front Axle13534lb
Operating Weight - Typically Equipped - Rear Axle32118lb
Gross Vehicle Weight - Base - Front Axle10660lb
Gross Vehicle Weight - Base - Rear Axle29444lb
Gross Vehicle Weight - Maximum - Total54869lb
Gross Vehicle Weight - Base - Total40104lb
Operating Weight - Typically Equipped - Total45652lb
Standards
SoundISO 6394; ISO 6395
BrakesISO 3450, ISO 10265
SteeringISO 5010
ROPS/FOPSISO 3471/ISO 3499
