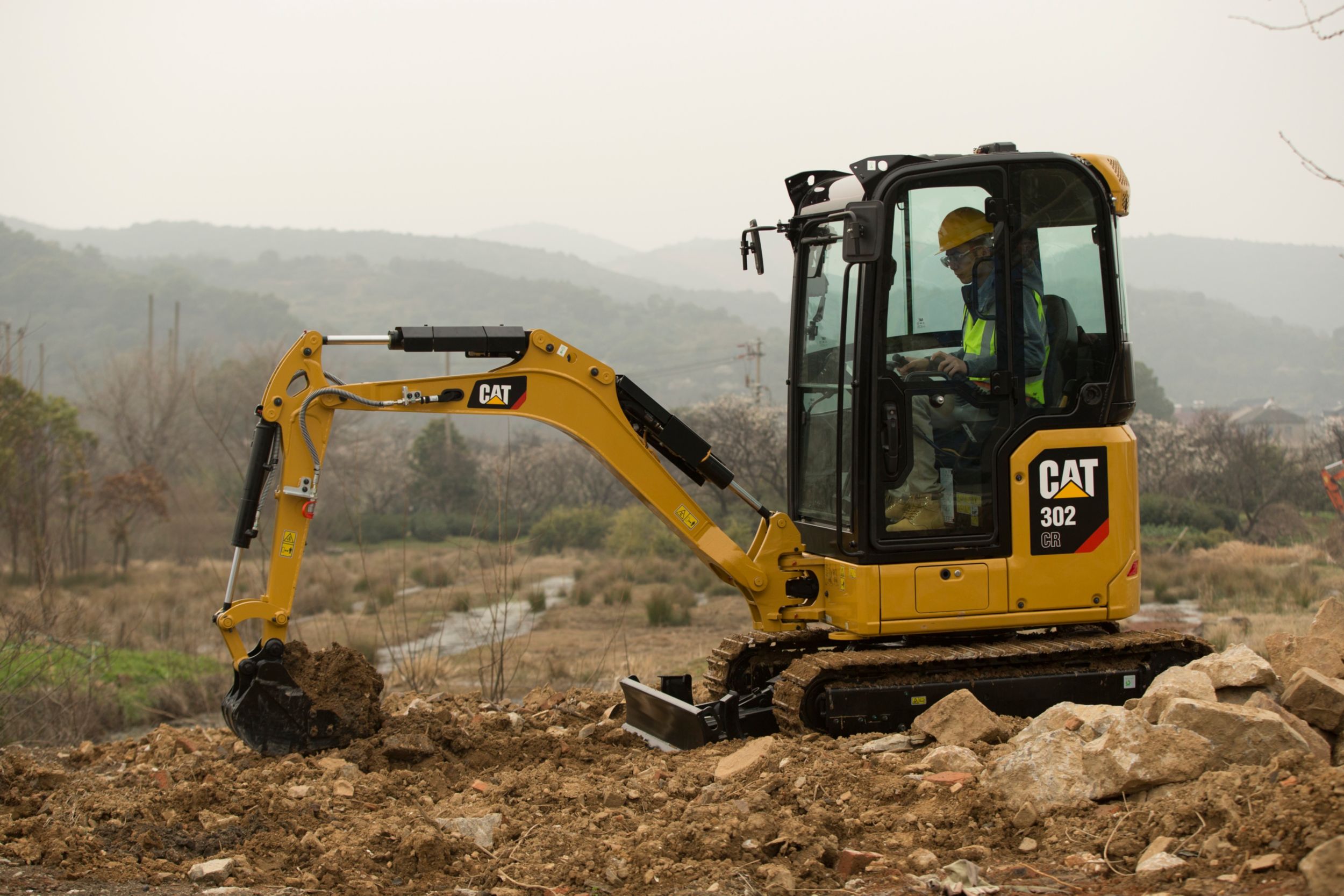

Caterpillar 302 CR Mini Hydraulic Excavator
THE RUNDOWN
ALL DAY COMFORT
- A sealed and pressurized cab equipped with air conditioning, adjustable wrist rests, and a suspension seat help keep you working comfortably all day long.
EASY TO OPERATE
- Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.
STICK STEER TRAVEL MODE
- Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
BIG PERFORMANCE IN A COMPACT DESIGN
- Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
SAFETY ON THE JOB SITE
- Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.
SIMPLE SERVICE FOR LESS DOWNTIME
- Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up cab lets you reach additional service areas when needed.
LOWER OPERATING COSTS
- Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.
SUSTAINABILITY
- The Cat® C1.1 Turbo engine meets China Nonroad Stage IV emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to:
- • 20% biodiesel FAME (fatty acid methyl ester)*
- • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels
- Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
- The following features and technology may contribute to fuel savings and/or carbon reduction. Features may vary. Consult your Cat dealer for details.
- – Advanced hydraulic systems balance power and efficiency
- – Power On Demand provides full time efficiency and power when you need it, and is transparent to the operator
- – Auto idle and auto engine shutdown
- – Extended maintenance intervals reduce fluid and filter consumption
- – Remote Flash and Remote Troubleshoot (if equipped)
- Recyclability – 95%
Engine
| Engine Model | C1.1 |
| Net Power | 19.2hp |
| Bore | 3in |
| Stroke | 3.2in |
| Rated Net Power - 2,400 rpm - ISO 9249/EEC 80/1269 | 19.2hp |
| Displacement | 69in³ |
| Gross Power - ISO 14396 | 21.6hp |
| Note 2 | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note 1 | Meets China Nonroad Stage IV emission standards. Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load. |
| Note | Meets China Nonroad Stage IV emission standards. |
Weights
| Operating Weight | 4861lb |
| Minimum Operating Weight with Cab* | 4502lb |
| Note (2) | **Maximum Weight is based on steel tracks, cab, operator, expandable undercarriage and full fuel tank. |
| Maximum Operating Weight with Cab** | 4861lb |
| Note (1) | *Minimum Weight is based on rubber tracks, cab, operator, fixed undercarriage and full fuel tank. |
Blade
| Height | 8.9in |
| Note | *Expanded – 1300 mm |
| Width* | 42.9in |
Dimensions - Long Stick
| Boom Swing - Left | 65° |
| Tail Swing | 29.5in |
| Boom In Reach | 65.4in |
| Boom Height - Shipping Position | 40.2in |
| Maximum Dump Clearance | 103.9in |
| O/A Shipping Height | 90.6in |
| Track Width - Retracted | 42.9in |
| Vertical Wall | 76.4in |
| Swing Bearing - Height | 17.4in |
| Maximum Blade Depth | 11.6in |
| Maximum Blade Height | 11.2in |
| O/A Undercarriage Length | 72.8in |
| Minimum Ground Clearance Below Undercarriage | 5.9in |
| Maximum Reach - Ground Level | 165.7in |
| Track Width - Expanded | 55.12in |
| O/A Shipping Length | 152.8in |
| Maximum Reach | 168.1in |
| Track Belt/Shoe Width | 9.8in |
| Maximum Dig Height | 142.5in |
| Boom Swing - Right | 50° |
| Dig Depth | 101.2in |
| Stick Length | 45.7in |
Dimensions - Standard Stick
| O/A Shipping Length | 153.5in |
| Boom Height - Shipping Position | 42.1in |
| Dig Depth | 93.3in |
| Stick Length | 37.8in |
| Maximum Reach - Ground Level | 159.1in |
| Maximum Dig Height | 139.8in |
| Maximum Blade Height | 11.2in |
| Swing Bearing - Height | 17.4in |
| Boom In Reach | 65.4in |
| Maximum Blade Depth | 11.6in |
| O/A Undercarriage Length | 72.8in |
| O/A Shipping Height | 90.6in |
| Track Width - Expanded | 55.12in |
| Vertical Wall | 72.8in |
| Maximum Dump Clearance | 100.8in |
| Tail Swing | 29.5in |
| Minimum Ground Clearance Below Undercarriage | 5.9in |
| Boom Swing - Left | 65° |
| Track Width - Retracted | 42.9in |
| Track Belt/Shoe Width | 9.8in |
| Maximum Reach | 161.8in |
| Boom Swing - Right | 50° |
Swing System
| Machine Swing Speed | 9.8r/min |
Hydraulic System
| Pump Flow at 2,400 rpm | 17.4gpm |
| Operating Pressure - Swing | 2132.1psi |
| Auxiliary Circuit - Secondary - Pressure | 3553.4psi |
| Operating Pressure - Equipment | 3553.4psi |
| Operating Pressure - Travel | 3553.4psi |
| Auxiliary Circuit - Primary - Flow | 8.7gpm |
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump |
| Auxiliary Circuit - Secondary - Flow | 3.7gpm |
| Digging Force - Stick - Long | 2203.1lb |
| Digging Force - Bucket | 4406.3lb |
| Auxiliary Circuit - Primary - Pressure | 3553.4psi |
| Digging Force - Stick - Standard | 2540.3lb |
Weight Increase from Minimum Configuration
| Steel Tracks | 132lb |
| Expandable Undercarriage | 212lb |
| Long Stick | 15lb |
Certification - Cab
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Top Guard | ISO 10262:1998 (Level I) |
| Tip Over Protective Structure (TOPS) | ISO 12117:1997 |
Travel System
| Gradeability - Maximum | 30 degrees |
| Maximum Traction Force - High Speed | 2967.5lb |
| Ground Pressure - Maximum Weight | 3.9psi |
| Travel Speed - Low | 1.8mile/h |
| Maximum Traction Force - Low Speed | 4496.2lb |
| Travel Speed - High | 2.7mile/h |
| Ground Pressure - Minimum Weight | 3.4psi |
Sound
| Dynamic Operating Sound Pressure - ISO 6396 | 73dB(A) |
| Average Exterior Sound Pressure (ISO 6395:2008) | 93dB(A) |
Service Refill Capacities
| Hydraulic Tank | 4.8gal (US) |
| Hydraulic System | 6.9gal (US) |
| Engine Oil | 1.2gal (US) |
| Cooling System | 1gal (US) |
| Fuel Tank | 6.9gal (US) |
