Caterpillar 301.7 CR 0JH706875

Caterpillar 301.7 CR Mini Hydraulic Excavator

Virtual product tour thumbnail
Virtual product tour thumbnail

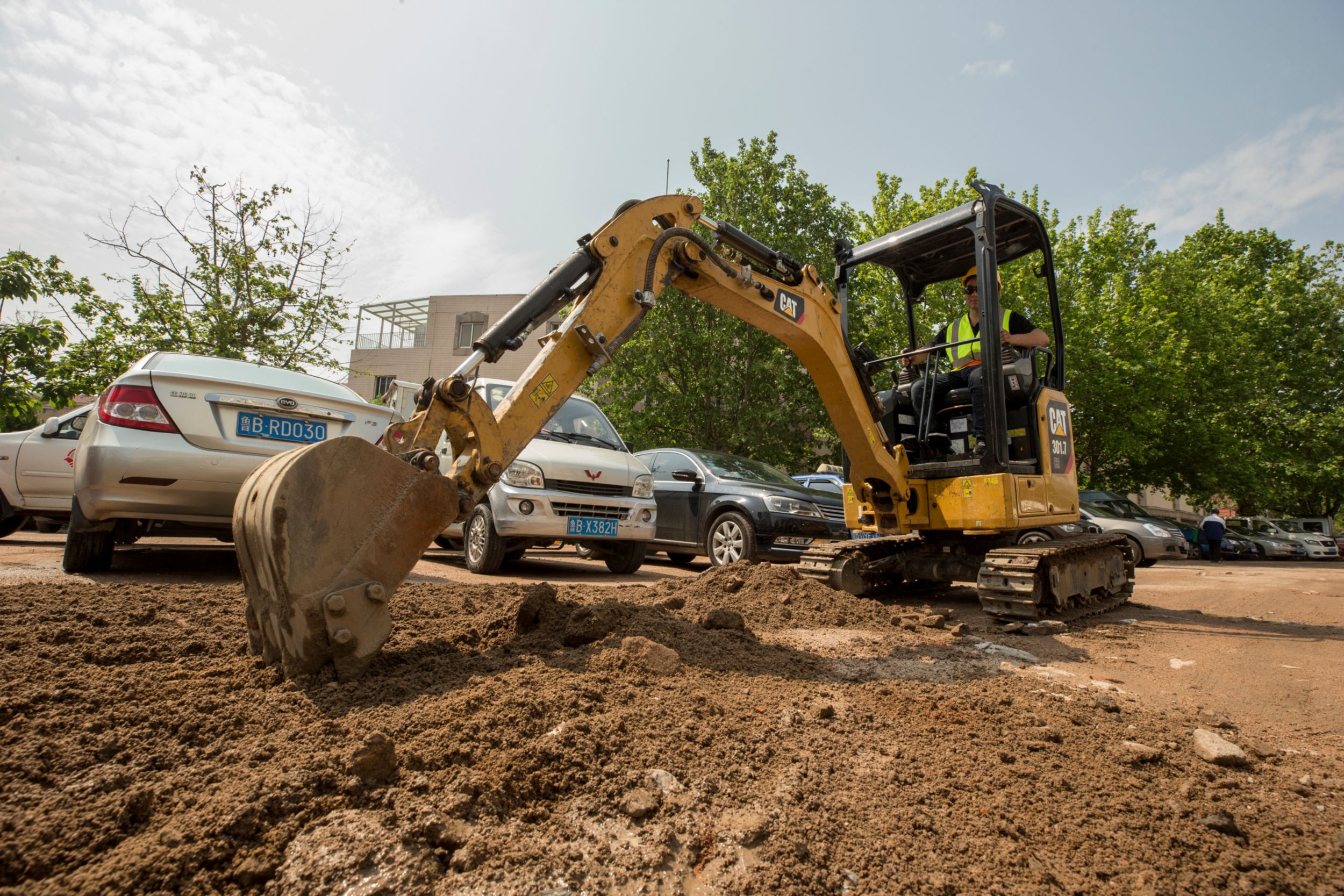

301.7 CR Mini Hydraulic Excavator
301.7 CR Mini Hydraulic Excavator
301.7 CR Mini Hydraulic Excavator
301.7 CR Mini Hydraulic Excavator
Front View
Top View
Left View
Rear View
Bottom View
Right View
Daily
$349
Weekly
$949
Monthly
$2,356
The Cat® 301.7 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
See Similar Used Options
Catapillar Limited Time Offers

Limited-Time Offers

See Offers

THE RUNDOWN

ALL DAY COMFORT
301.7 CR Mini Excavator
  • Adjustable wrist rests and a suspension seat help keep you working comfortably all day long.
EASY TO OPERATE
301.7 CR Mini Excavator
  • Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information.
STICK STEER TRAVEL MODE
301.7 CR Mini Excavator
  • Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
BIG PERFORMANCE IN A COMPACT DESIGN
301.7 CR Mini Excavator
  • Strong lift and dig performance helps you get the job done faster. The compact radius design and retractable undercarriage lets you access and work in the tightest areas. Dig-to-blade and dozer float features allow for easy clean up.
SAFETY ON THE JOB SITE
301.7 CR Mini Excavator
  • Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt are just a couple of the safety features we’ve built into the machine.
SIMPLE SERVICE FOR LESS DOWNTIME
301.7 CR Mini Excavator
  • Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors. The unique tilt up canopy lets you reach additional service areas when needed.
LOWER OPERATING COSTS
301.7 CR Mini Excavator
  • Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.
UNMATCHED DEALER SUPPORT
  • Your Cat dealer is here to help you reach your business goals. Fromproviding equipment solutions to operator training to service needs andbeyond, your Cat dealer is ready to help.
Engine
Engine ModelC1.1
Net Power19.2hp
Gross Power - ISO 1439621.6hp
Note 2Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Rated Net Power - 2,400 rpm - ISO 9249/EEC 80/126919.2hp
Stroke3.2in
Bore3in
Note (2)Advertised power is tested per the specified standard in effect at the time of manufacture.
Note 1Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Displacement69in³
Note (1)Engine power is tested per ISO 14396:2002.
Weights
Operating Weight4063lb
Maximum Operating Weight with Canopy**4063lb
Note (1)*Minimum Weight is based on rubber tracks, canopy, operator and full fuel tank.
Note (2)**Maximum Weight is based on steel tracks, canopy, operator and full fuel tank.
Minimum Operating Weight with Canopy*3937lb
Blade
Height8.9in
Width*39in
Note*Expanded – 1300 mm
Weight Increase from Minimum Configuration
Steel Tracks110lb
Long Stick15lb
Expandable UndercarriageStandard
Heavy Counterweight148lb
Dimensions - Standard Stick
Tail Swing25.6in
Track Width - Expanded51.18in
Maximum Blade Depth10.4in
Maximum Reach156.3in
Maximum Dig Height135in
Maximum Blade Height10.6in
Maximum Dump Clearance96.5in
O/A Shipping Height90.6in
Vertical Wall70.9in
Boom Height - Shipping Position42.9in
Boom Swing - Left65°
O/A Undercarriage Length62.6in
Track Belt/Shoe Width9.1in
Minimum Ground Clearance Below Undercarriage5.9in
Track Width - Retracted39in
Boom Swing - Right50°
Dig Depth92.5in
O/A Shipping Length142.5in
Maximum Reach - Ground Level153.5in
Boom In Reach64.2in
Swing Bearing - Height17.4in
Stick Length37.8in
Travel System
Ground Pressure - Minimum Weight4psi
Maximum Traction Force - High Speed2675.2lb
Travel Speed - High2.7mile/h
Travel Speed - Low1.8mile/h
Gradeability - Maximum30 degrees
Maximum Traction Force - Low Speed4136.5lb
Ground Pressure - Maximum Weight4.2psi
Hydraulic System
Auxiliary Circuit - Primary - Pressure3553.4psi
TypeLoad Sensing Hydraulics with Variable Displacement Piston Pump
Pump Flow at 2,400 rpm17.4gpm
Operating Pressure - Swing2132.1psi
Operating Pressure - Travel3553.4psi
Operating Pressure - Equipment3553.4psi
Digging Force - Stick - Standard2135.7lb
Auxiliary Circuit - Secondary - Pressure3553.4psi
Auxiliary Circuit - Primary - Flow8.7gpm
Digging Force - Bucket3641.9lb
Auxiliary Circuit - Secondary - Flow3.7gpm
Digging Force - Stick - Long1865.9lb
Dimensions - Long Stick
Boom Swing - Left65°
Boom In Reach63.8in
Minimum Ground Clearance Below Undercarriage5.9in
O/A Shipping Length141.3in
Maximum Blade Depth10.4in
Maximum Dig Height137.4in
Track Belt/Shoe Width9.1in
Stick Length45.7in
Boom Swing - Right50°
Dig Depth100in
O/A Shipping Height90.6in
Vertical Wall74.4in
Track Width - Expanded51.18in
Swing Bearing - Height17.4in
O/A Undercarriage Length62.6in
Maximum Blade Height10.6in
Maximum Dump Clearance98.8in
Tail Swing25.6in
Maximum Reach - Ground Level159.8in
Boom Height - Shipping Position40.9in
Maximum Reach162.6in
Track Width - Retracted39in
Service Refill Capacities
Engine Oil1.2gal (US)
Hydraulic Tank4.8gal (US)
Cooling System1gal (US)
Fuel Tank5.8gal (US)
Hydraulic System6.9gal (US)
Certification - Canopy
Top GuardISO 10262:1998 (Level I)
Tip Over Protective Structure (TOPS)ISO 12117:1997
Roll Over Protective Structure (ROPS)ISO 12117-2:2008
Sound
Average Exterior Sound Pressure (ISO 6395:2008)93dB(A)
Swing System
Machine Swing Speed9.8r/min
