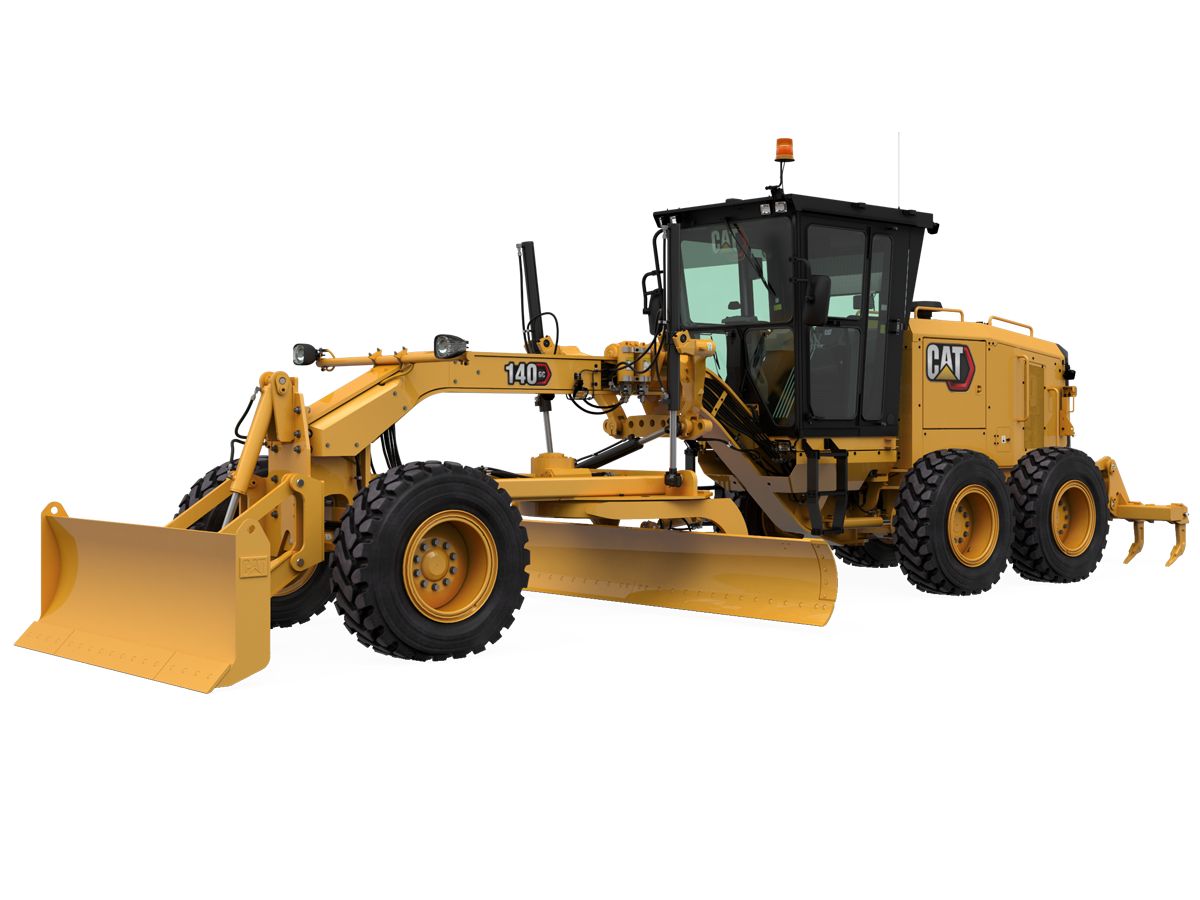

140 GC Motor Grader
THE RUNDOWN
Built to Perform
- Increase your fuel economy up to 5% with the standard Eco mode.
- The on-demand fan reduces fuel consumption and under-hood heat for longer component life.
- Improve productivity with the Electronic Throttle Control which matches engine power and torque to application requirements.
- The powershift transmission with torque converter and machine balanced design ensures that you get full drawbar power to the ground with the Cat C7.1 engine.
- The all-wheel drive (AWD) option assists with traction and maneuvering in loose material. The increased power with all wheel drive handles rough terrain with extra traction for better productivity.
- The hydraulic system offers a multifunction capability for precise and predictable performance resulting in a more consistent grade.
- Increase your maneuverability with the articulation hitch to give you a shorter turning radius.
- The Digital Blade Slope Meter option shows you the grade without relying on manual grade checkers to keep your work site more productive and safer.
- Product Link provides location, machine hours, fuel usage, productivity, idle time, diagnostic codes, and other machine data on demand through the VisionLink� online interface, which helps you improve jobsite efficiency with lower operating costs.
Work in Comfort
- Choose your comfort level in the cab with standard, mechanical suspension or air suspension seat.
- Easily adjust the control console and steering wheel.
- The high capacity Heating, Ventilation and Air Conditioning (HVAC) system option circulates fresh air, prevents dust entry and keeps windows from fogging.
- Quickly find your current gear in the front display.
- Easily add a radio to the cab using the built-in mounting location option.
Reliable, Whatever the Environment
- The drawbar circle moldboard stays factory tight providing precision grading pass after pass.
- The machine structure is built for a long life. It's designed to use several types of work tools, such as a front blade.
- A slip clutch option protects the circle drive if the machine strikes an immovable object.
- The front axle maximizes bearing life while also minimizing maintenance.
- Reduce daily greasing requirements and costly repairs to your circle and pinion with the Circle Saver option.
Safely Home Every Day
- See what's behind you with the rear camera option. The dedicated display can always be on to ensure a safe work environment.
- Optional dual front cameras offer more visibility to you while roading and working with the blade.
- In the event of an engine stall, count on the secondary steering system option to help stop the machine safely.
- Use three points of contact when entering and exiting the machine with strategically placed walk ways and grab rails.
- The optional four-point safety harness seat belt provides extra protection.
- Ground level engine shut-off switch stops all fuel to the engine when activated and shuts down the machine.
- See the rear of your machine with side and rearview mirrors.
- Work past sundown using the strategically placed lights for night time visibility.
Simplified Maintenance
- Filters, such as fuel, engine air, and oil filters, are grouped together for easy access and preventative maintenance.
- The standard drawbar circle moldboard increases durability using hardened circle teeth and replaceable wear inserts to help sustain factory tightness.
- Hydraulic brakes are well oiled to keep them maintenance free.
- The standard bottom guard shields the transmission and filter. Optional guarding underneath the cab protects your machine from damage in demanding applications.
- Spend less time cleaning the cooling system with the reversing fan option, which reduces costs when cleaned once per week for more uptime.
- Remote Troubleshoot connects you to a dealer service pro to help solve your problem and quickly get you to work.
- Remote Flash works around your schedule to ensure your machine's software is up to date for optimal performance.
- The new hydraulic system includes integrated work port pressure relief, an integrated dead engine implement lower, and reduction in leak points for safety and quality.
- S•O•S Ports are available for simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.
- The hydraulic system includes integrated work port pressure relief, an integrated dead engine implement lower, and reduction in leak points for safety and quality.
Expand Your Capabilities
- Improve the performance and efficiency of your machine with the standard or heavy-duty push block and counterweight options.
- Ripper and scarifier options are available to assist with grading hard ground.
- The front lift group option is ready for attachments like the straight front blade.
- Expand your machine's capabilities with the tow hitch.
- For more road coverage, add a moldboard extension to add 605 mm (24 in).
Engine
| Engine Power (ISO 14396) | 196hp |
| Bore | 4.1in |
| Derating Altitude | 9842ft |
| Displacement | 427.8in³ |
| Emissions | U.S. EPA Tier 4 Final/EU Stage V |
| Engine Model | Cat 7.1 |
| Engine RPM | 2,200 |
| Standard Capability | 109°F |
| High - Ambient Capability | 122°F |
| Maximum Torque - ISO 9249 | 616lb/ft |
| Stroke | 5.3in |
| Torque Rise - ISO 9294 | 40% |
| Number of Cylinders | 6 |
| Note (1) | Net power is tested per ISO 9249, SAE J1349, and EEC 80/1269 standards in effect at the time of manufacture. |
| Note (2) | Net power advertised is the power available at rated speed of 2,200 rpm, measured at the flywheel when engine is equipped with fan, air cleaner, muffler and alternator. |
| Note (3) | Power as declared per ISO 14396 |
| Engine Power AWD (ISO 14396) | 196hp |
Weights
| Operating Weight - Typically Equipped | 38725lb |
| Note | *Typically equipped operating weight is calculated with full fuel tank, coolant, lubricants, operator, push block, rear ripper, tires on multi-piece rims (*17.5-25 Bias/**17.5R-25), and other equipment. |
Moldboard
| Blade Width | 12ft |
| Arc Radius | 16.3in |
| Blade Height | 24in |
| Cutting Edge Width | 6in |
| End Bit | 6in |
| Throat Clearance | 4.4in |
Weight
| All-Wheel Drive Weight (AWD) (Stage V)* | 40543lb |
| All-wheel Drive Weight (AWD) (Tier 4 Final)** | 42119lb |
| Weight (Tier 4 Final)** | 40488lb |
Dimensions
| Width All Wheel Drive (AWD) | 99.3in |
| Length of Machine* | 406.7in |
| Maximum Height | 132.4in |
| Width | 95.6in |
| Note | *Typically equipped with push block and ripper. |
Blade Range
| Circle Center Shift Left | 29.6in |
| Circle Center Shift Right | 28.7in |
| Maximum Depth of Cut | 28.1in |
| Maximum Lift Above Ground | 18.7in |
| Maximum Shoulder Reach Left | 74.3in |
| Maximum Shoulder Reach Right | 71.3in |
| Moldboard Side Shift Left | 25.6in |
| Moldboard Side Shift Right | 20.7in |
| Blade Tip Range Backward | 5 |
| Blade Tip Range Forward | 40 |
Service Refill Capacities
| Fuel Tank | 78gal (US) |
| Circle Drive with Slip Clutch | 2gal (US) |
| Circle Drive without Slip Clutch | 0.5gal (US) |
| Cooling System | 40l |
| Engine Crankcase | 5.5gal (US) |
| Diesel Exhaust Fluid Tank (Tier 4 Only) | 4.2gal (US) |
| Hydraulic System | 11.9gal (US) |
| Transmission | 4.8gal (US) |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. |
Standard Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Cab
- Standard Seat
- Steering Wheel/Lever Controls
- Base Cab
- Information Display Screen
- Halogen Lighting
- Entertainment Radio Ready
- Product Link
- Cell Phone Holder
Powertrain
- Cat C7.1
- Eco mode
- On-Demand Fan
- No-Spin Differential
Safety
- Parking Brake
- Signaling/Warning Horn
- Rearview Mirror
- Hydraulic Brakes
- Sideview Mirrors
- Walkways and Grab Rails
- Hydraulic System with Integrated Work Port Pressure Relief
- Hydraulic System with Integrated Dead Engine Implement Lower
Optional Equipment
NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Cab
- Mechanical Suspension Seat
- Air Suspension Seat
- ROPS/FOPS
- Heating/Cooling Cab System
- Rear Wiper
- Canopy
- Cab Plus
- Rear Window Screen
- Front Wipers
- Digital Blade Slope Meter
Powertrain
- Reversing Fan
- All-Wheel Drive (AWD)
Drawbar Circle Moldboard
- Circle Drive Slip Clutch
- Circle Saver
Safety
- Rearview Camera
- Secondary Steering System
- Front View Camera
- Four-point Safety Harness Seat Belt
Versatility
- Scarifier
- Counterweight
- Push Block
- Front Lift Group From Factory
- Snow Wing
- Front Blade
- L3 Tires
- Sy-Klone Pre-Cleaner
